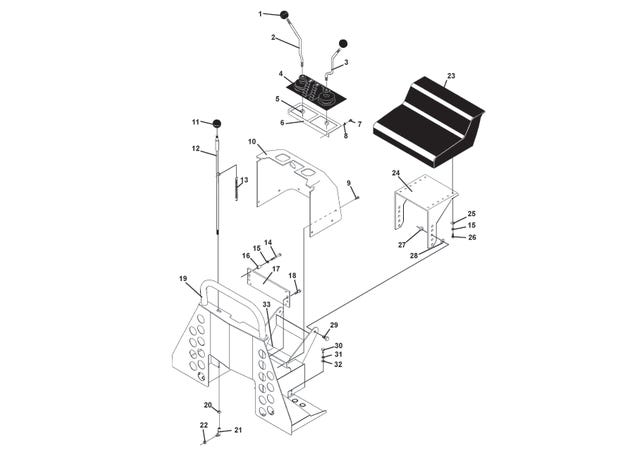

Bradco Backhoe, 500 Series Parts CONSOLE ASSEMBLY ASSEMBLY #104161

1

85838

KNOB,BALL

$20.40

2

87952

LEVER,CONTROL,RH

$42.48

3

87951

LEVER,CONTROL,LH

$44.84

4

83235

BOOT,RUBBER,CONTROL LEVER

$63.25

5

2558

NUT HEX M10-1.5 X 17

$3.75

6

85826

PLATE,BOOT SUPPORT

$49.56

7

1001

SCREW HHC 0.25-20 x 0.5 GR5 PLD

$5.38

8

1501

WASHER,LOCK SPLIT .25 PLD

$3.75

9

1958

SCREW HHC 0.25-20 x 0.75 GR5 PLD

$9.38

10

106360

COVER W/DECALS,BACKHOE

$240.90

11

83406

HANDLE,BALL,RED,1.75D,.38NC

$24.00

12

83273

ROD WMT,BACKHOE,PLD

$71.92

13

82795

SPRING EXTENSION .50X5.00

$16.80

14

1026

SCREW HHC 0.31-18 x 2.00 GR5 PLD

$2.75

15

1502

WASHER LOCK SPLIT REG 0.31 PLD

$3.75

16

19471

TUBE,RND,.62X.39X.75

$8.09

17

101660

PLATE,REC,.31X6.50X12.25

$55.46

18

1044

SCREW HHC 0.38-16 X 1.25 GR5 PLD

$4.00

19

87288

CONSOLE WMT

$868.18

20

1476

NUT HEX 0.38-24 GR5 PLD

$5.02

21

5545

BALL JOINT,90 DEG.38-24

$25.20

22

1592

NUT NYLOCK 0.3824 GR5 PLD

$6.75

23

6980

SEAT,BACKHOE,W/DECAL

$204.60

24

87142

PLATE,IRG,.19X7.48X33.85

$79.75

25

1513

WASHER FL .31 USS PLD

$5.38

26

1021

SCREW HHC 0.31-18 x .75 GR5 PLD

$5.38

27

1542

NUT NYLOCK 0.50-13 GR5 PLD

$5.38

28

1516

WASHER FL .50 USS PLD

$4.00

29

1089

SCREW HHC 0.50-13 X 1.25 GR5 PLD

$5.38

30

1042

SCREW HHC 0.38-16 X .75 GR5 PLD

$5.38

31

1503

WASHER,LOCK SPLIT .38 PLD

$5.38

32

1514

WASHER FL .38 USS PLD

$5.38

33

87147

PLATE,COVER

$32.75
