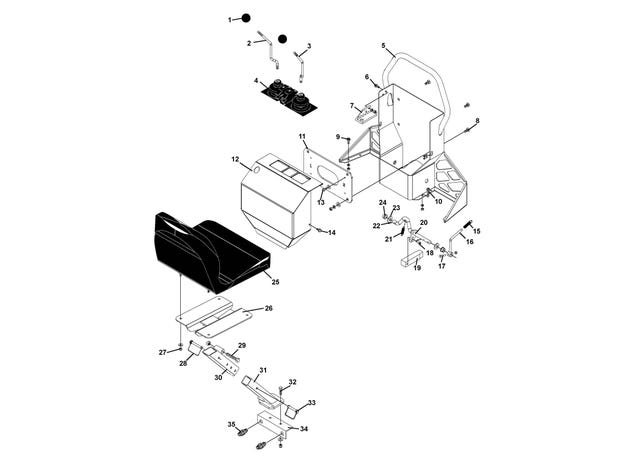

Bradco Backhoe, 6000 Series Parts CONSOLE ASSEMBLY ASSEMBLY #109322

1

85838

KNOB,BALL

$20.40

2

87951

LEVER,CONTROL,LH

$44.84

3

87952

LEVER,CONTROL,RH

$42.48

4

83235

BOOT,RUBBER,CONTROL LEVER

$63.25

5

110346

Console

product not available CALL FOR AVAILABILITY

$0.00

7

109315

Angle Mount

product not available CALL FOR AVAILABILITY

$0.00

8

10008

BOLT CRG .38-16X1.00 GR5

$5.38

9

10193

SCREW HFH 0.31-18 X 1.00

$5.02

10

10192

SCREW HFH 0.31-18 X 1.50

$5.02

11

110350

Valve Mounting Plate

product not available CALL FOR AVAILABILITY

$0.00

12

109440

Valve Cover

product not available CALL FOR AVAILABILITY

$0.00

13

1021

SCREW HHC 0.31-18 x .75 GR5 PLD

$5.38

14

1930

SCREW HFH .31-18 X 0.75 GR5 PLD

$3.75

15

83656

GRIP,HANDLE,.38X3.00,RED

$5.38

16

110323

Swing Lock Handle

product not available CALL FOR AVAILABILITY

$0.00

17

1005

SCREW HHC 0.25-20 x 1.5 GR5 PLD

$5.38

18

1982

SCREW SHOULDER .31X.62,1/4-20

$5.38

19

109348

Swing Lock Pin

product not available CALL FOR AVAILABILITY

$0.00

20

109346

Swing Lock Rod

product not available CALL FOR AVAILABILITY

$0.00

21

110320

Extension Spring

product not available CALL FOR AVAILABILITY

$0.00

22

1611

PIN CTTR .12X1.00

$3.75

23

1528

WASHER FL .62 SAE PLD

$5.38

24

82794

BUSHING,FLANGE,.82X.63X.50

$9.70

25

105988

SEAT,BACKHOE,HIGH BACK,W/DECAL

$914.30

26

107438

SEAT MOUNT WM T

$136.64

27

1753

NUT NYLOCK 0.31-18 GR5 PLD

$5.38

28

107439

PIN,SNAPPER,.38X3.00

$24.00

29

1096

SCREW HHC 0.50-13 X 3.00 GR5 PLD

$4.00

30

210995

Seat Mount

product not available CALL FOR AVAILABILITY

$112.75

31

105240

SEAT POST BASE WM T

$119.84

32

1045

SCREW HHC 0.38N-16 X 1.50 GR5 PLD

$4.93

33

105247

PIN,SNAPPER,.375X2.50

$10.63

34

109388

ANGLE,BAR,.19X2.00X2.00X8.00

product not available CALL FOR AVAILABILITY

$37.80

35

3275

FTG 8MJ-8MJ BH

$16.80



1629

NUT NYLOCK 0.25-20 GR5 PLD

$3.75



1926

NUT .31UNC,GR5, U-STYLE CLIP NUT

$6.75



1513

WASHER FL .31 USS PLD

$5.38



1225

NUT HEX 0.31-18 GR5 Z&C

$6.13



1502

WASHER LOCK SPLIT REG 0.31 PLD

$3.75



1536

NUT NYLOCK 0.38-16 GR5 PLD

$5.38



1226

NUT HEX 0.38-16 GR5 PLD

$12.19



1503

WASHER,LOCK SPLIT .38 PLD

$5.38



1514

WASHER FL .38 USS PLD

$5.38



1841

NUT LOCK TORQUE 0.50-13 GR8 PLD

$5.38
