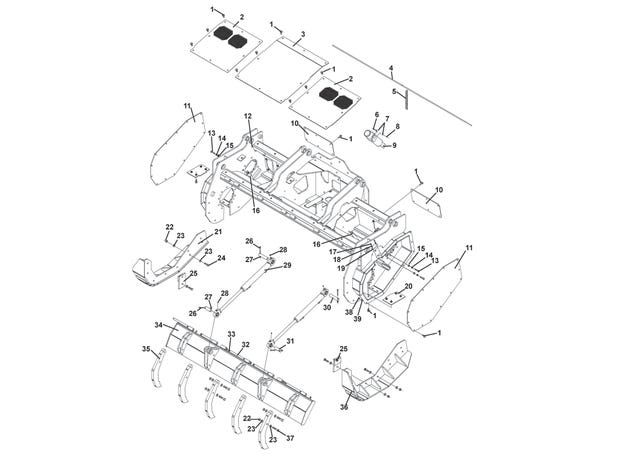

88" MULCHER ASSEMBLIES 1 MH88-3H MULCHER ASSEMBLY - 300HP #116823MAINFRAME

#
Part #
Item
Price
Qty
Add
1
10221
SCREW HFH 0.50-13 X 1.25 GR5 PLD
$12.68
2
116641
Outside Compartment Cover

product not available CALL FOR AVAILABILITY

$0.00
3
116642
Center Compartment Cover

product not available CALL FOR AVAILABILITY

$0.00
4
111963
Chain Holder Bar

product not available CALL FOR AVAILABILITY

$0.00
5
801-260
CHAIN,.31X11.12,(9 LINKS),PLD
$26.00
6
1023
SCREW HHC 0.31-18 x 1.25 GR5 PLD
$6.57
7
1513
WASHER FL .31 USS PLD
$6.57
8
1934RP
.31" UNC Deformed Lock Nut

product not available CALL FOR AVAILABILITY

$1.49
9
25453
STORAGE TUBE, MANUALS
$40.04
10
111987
Maintenance Cover

product not available CALL FOR AVAILABILITY

$0.00
11
111957
Drive Belt Cover

product not available CALL FOR AVAILABILITY

$0.00
12
111891
Mainframe

product not available CALL FOR AVAILABILITY

$0.00
13
1092
SCREW HHC 0.50-13 X 2.00 GR5 PLD
$5.02
14
1505RP
.50" Lock Washer

product not available CALL FOR AVAILABILITY

$1.71
15
1646
WASHER FL HRD F436 .50 PLD
$6.57
16
114444
Housing Seal

product not available CALL FOR AVAILABILITY

$0.00
17
1021
SCREW HHC 0.31-18 x .75 GR5 PLD
$6.57
18
1502
WASHER LOCK SPLIT REG 0.31 PLD
$6.57
19
110175
Belt Tension Access Cover

product not available CALL FOR AVAILABILITY

$0.00
20
112719
Drive Housing Filler Plate (Install capscrews using Loctite 271.)

product not available CALL FOR AVAILABILITY

$0.00
21
113197
Right Skid Shoe

product not available CALL FOR AVAILABILITY

$0.00
22
1839
NUT LOCK TORQUE 0.62-11 GR5 PLD
$6.86
23
1627
WASHER FL HRD F436 .62 PLD
$6.57
24
1116
SCREW HHC 0.62-11 X 2.00 GR5 PLD
$20.67
25
112716
Side Plate Filler

product not available CALL FOR AVAILABILITY

$0.00
26
1051
SCREW HHC 0.38-16 X 3.00 GR5 PLD
$6.57
27
1837
NUT LOCK TORQUE .38-16 GR5 PLD
$122.57
28
6616
ZERK,GREASE,.25-28NF
$6.57
29
112721
Deflector Door Cylinder

product not available CALL FOR AVAILABILITY

$0.00
30
112713
Pivot Pin 5.56" Long

product not available CALL FOR AVAILABILITY

$0.00
31
111961
Pivot Pin 3.81" Long

product not available CALL FOR AVAILABILITY

$0.00
32
111962
Pivot Pin 9.50" Long

product not available CALL FOR AVAILABILITY

$0.00
33
10222
RING,SNAP EXT,5160-75, PLD
$6.57
34
112725
Deflector Door

product not available CALL FOR AVAILABILITY

$0.00
35
111959
Deflector Door Grapple Tooth

product not available CALL FOR AVAILABILITY

$0.00
36
113198
Left Skid Shoe

product not available CALL FOR AVAILABILITY

$0.00
37
1121
SCREW HHC 0.62-11 X 3.25 GR5 PLD
$7.92
38
1841
NUT LOCK TORQUE 0.50-13 GR8 PLD
$6.57
39
1527
WASHER FL .50 SAE PLD
$6.57
NS
112715
Replacement Skid Shoe Wear Plate

product not available CALL FOR AVAILABILITY

$0.00
NS
45822
Replacement Seal Kit

product not available CALL FOR AVAILABILITY

$0.00
