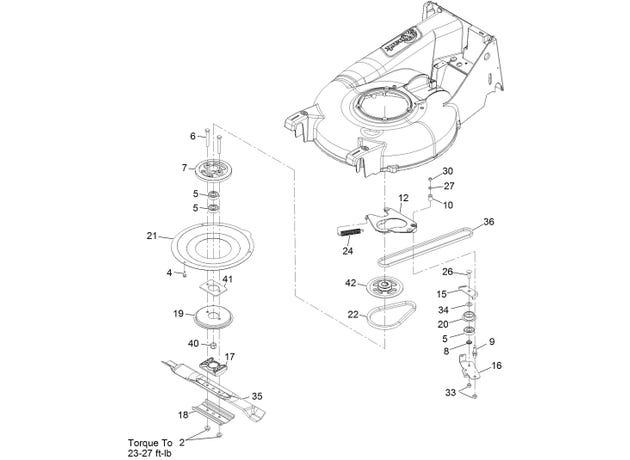

eXmark MN ECXHNBBC21 Blade Assembly

2

54-9190

Nut-Hex 3/8-24 Lock

product not available CALL FOR AVAILABILITY

$1.00

4

32144-85

Screw-HWH 1/4-20 x .62

$2.07

5

100-1048

Bearing-Ball

$8.78

6

104-5937

Screw-HH 3/8-24 x 2 3/4

$4.79

7

107-0754

DRUM

product not available CALL FOR AVAILABILITY

$0.01

8

107-0758

SPACER-BEARING

$3.47

9

107-0759

BOLT-SHOULDER

$11.99

10

107-0797

BUSHING

$7.07

12

109-7243

PLATE,ANCHOR

$25.29

15

107-7471

PLATE-GUIDE

product not available CALL FOR AVAILABILITY

$0.01

16

120-9514

PLATE-BRAKE, ASM

product not available CALL FOR AVAILABILITY

$0.01

17

107-7487

SUPPORT-BLADE

$23.09

18

108-3766-03

SUPPORT-BLADE

$11.99

19

108-3787

DISC

product not available CALL FOR AVAILABILITY

$0.01

20

108-3790

RETAINER-BELT

product not available CALL FOR AVAILABILITY

$0.01

21

116-3360-03

COVER-BBC

$63.79

22

110-1790

BELT

$25.29

24

108-3792

SPRING-TENSION, BRAKE

$12.09

26

3231-38

Bolt-Carriage 3/8-16 x 1 1/4

$8.51

27

3256-16

Washer-#12 Std

$0.59

30

3296-42

Nut-Nyloc 1/4-20

$0.59

33

603773

Nut-Hex 3/8-16 Side Lock

$2.98

34

605256

SPACER

$2.98

35

116-4500

BLADE-MEDIUM LIFT, 20.5

product not available CALL FOR AVAILABILITY

$0.01

36

109-7299

BELT,3L P21 DRIVE

product not available CALL FOR AVAILABILITY

$0.01

40

108-9342

Nut-Hex M14-1.5 Lock

$5.75

41

116-2666

SPACER

$13.19

42

110-7456

PULLEY

$57.19
