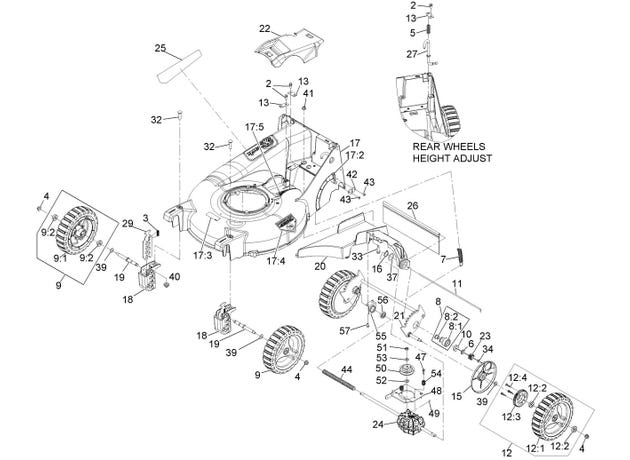

eXmark MN ECSKA21 Deck and Wheel Assembly

2

32144-85

Screw-HWH 1/4-20 x .62

$2.07

3

109-7258

SPRING-COMPRESSION

$3.11

4

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

5

109-7694

SPRING-COMPRESSION

$7.31

6

108-5059

SPACER-BUSHING

$8.51

7

109-7692

SPRING-EXTENSION

$7.07

8

116-6172

HOUSING ASM

$19.79

8:1

116-6171

HOUSING-BEARING

$18.69

8:2

116-4279

BEARING-FLANGE

$4.55

9

109-8016

WHEEL AND TIRE ASM

product not available CALL FOR AVAILABILITY

$0.01

11

109-8025

ROD,SHIELD

$12.09

12

109-8032

ASM,REAR WHEEL 9"

product not available CALL FOR AVAILABILITY

$0.01

12:1

109-8033

9-INCH WHEEL ASM

product not available CALL FOR AVAILABILITY

$0.01

12:2

109-8020

BEARING-BALL

product not available CALL FOR AVAILABILITY

$0.01

12:3

109-7264

GEAR

$26.39

12:4

27-6260

SCREW-DRIVE

$1.55

13

109-8441

BRACKET,MOUNT

$6.11

15

109-9287

COVER,GEAR

$12.09

16

32151-36

Ring-Retaining

$5.15

17

116-2006

DECK W/DECALS

product not available CALL FOR AVAILABILITY

$0.01

17:2

116-1922

DECAL-HEIGHT OF CUT

$7.79

17:3

68-7410

DECAL-BLADE

$11.99

17:4

94-8072

DECAL-DANGER

$7.07

17:5

109-9317

DECAL-COVER MISSING

$5.51

18

109-9302

BLOCK,FRONT QUADRANT

$24.19

19

116-0994

AXLE-WHEEL

$12.09

20

116-9646-01

BRACKET-TRANSMISSION AND CHUTE

$56.09

21

109-9312

WLD,REAR AXLE P21

$112.99

22

109-9324

COVER,BELT

$16.49

23

110-9417

GEAR-PINION, 15T

product not available CALL FOR AVAILABILITY

$0.01

24

116-9906

TRANSMISSION-HD, 4.5/1

$145.99

25

116-4362

DECAL-COMM 21 S-SERIES

$9.59

26

116-0252

SHIELD-TRAILING P21

$32.99

27

116-0329

ROD-HEIGHT ADJ P21

$9.59

29

109-9292

PLATE, FRONT HEIGHT

$16.49

32

109-8449

Bolt-Carriage 3/8-16 x 1 1/2

$3.24

33

32144-49

Screw-HWH 5/16-18 1 1/4 TF

$5.75

34

32151-61

Ring-Retaining

$3.11

37

74-1810

WASHER

$0.59

39

36-4780

Washer

$8.51

40

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

41

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

42

116-2221

PLATE,WEAR

$8.15

43

114439

Rivet

$1.55

44

126-2335

COVER-SHAFT-DRIVE

$6.47

47

27-0220

SCREW-SPECIAL

$8.51

48

116-3539-03

TRANSMISSION PLATE ASM

$56.09

49

3257-1

Key-Woodruff 1/8 x 1/2

$2.98

50

39-6740

PULLEY

$54.99

51

3296-5

Nut-Nyloc 3/8-24 Thin

$3.71

52

36-4792

Washer-Thrust

$1.55

53

3256-45

Washer-Flat

$0.74

54

116-1438

SPRING,COMPRESSION

$3.11

55

120-7008

MOUNT-BEARING

product not available CALL FOR AVAILABILITY

$0.01

56

104-8699

BEARING-BALL

$5.03

57

9266714

Screw-HWH 1/4-20 x .50

$1.55
