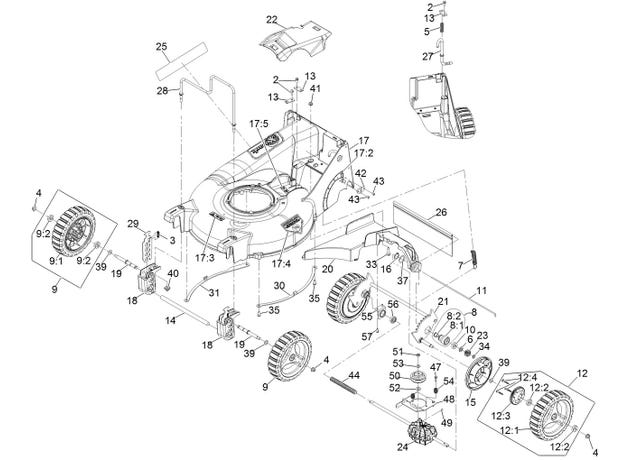

eXmark MN ECX180CKA210BC Deck and Wheel Assembly

2

32144-85

Screw-HWH 1/4-20 x .62

$2.07

3

109-7258

SPRING-COMPRESSION

$3.11

4

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

5

109-7694

SPRING-COMPRESSION

$7.31

6

108-5059

SPACER-BUSHING

$8.51

7

109-7692

SPRING-EXTENSION

$7.07

8

116-6172

HOUSING ASM

$19.79

8:1

116-6171

HOUSING-BEARING

$18.69

8:2

116-4279

BEARING-FLANGE

$4.55

9

126-7347

WHEEL ASM, 9" W/BEARINGS

$80.99

11

109-8025

ROD,SHIELD

$12.09

12

126-7758

WHEEL ASM, 9 W/GEAR

$83.99

12:1

126-7345

WHEEL ASM, 9"

$71.49

12:2

133-2603

BEARING-BALL

$25.29

12:3

133-2625

GEAR-WHEEL, 52T

$18.69

12:4

130-6426

STUD-DRIVE

$1.55

13

109-8441

BRACKET,MOUNT

$6.11

14

109-8454

ROD,BUMPER

$18.69

15

126-8259

COVER,GEAR

$6.47

16

32151-36

Ring-Retaining

$5.15

17

142-8690

ASM-DECK EC21

$306.99

17:2

116-1922

DECAL-HEIGHT OF CUT

$7.79

17:3

130-9670

DECAL-WARNING, BLADE

$2.98

17:4

94-8072

DECAL-DANGER

$7.07

17:5

119-0217

DECAL-DANGER

$5.75

18

109-9302

BLOCK,FRONT QUADRANT

$24.19

19

116-0994

AXLE-WHEEL

$12.09

20

116-9646-01

BRACKET-TRANSMISSION AND CHUTE

$56.09

21

109-9312

WLD,REAR AXLE P21

$112.99

22

109-9324

COVER,BELT

$16.49

23

131-5399

GEAR-PINION, 15T

$5.75

24

116-9906

TRANSMISSION-HD, 4.5/1

$145.99

25

126-6886

DECAL-COMM 21 X-SERIES

$9.11

26

116-0252

SHIELD-TRAILING P21

$32.99

27

116-0329

ROD-HEIGHT ADJ P21

$9.59

28

116-0522

GUARD,ENGINE

$37.39

29

109-9292

PLATE, FRONT HEIGHT

$16.49

30

116-0995-03

SKID,LH

$45.09

31

116-0996-03

SKID,RH

$45.09

33

32144-49

Screw-HWH 5/16-18 1 1/4 TF

$5.75

34

32151-61

Ring-Retaining

$3.11

35

613381

Screw-Button Head 5/16-18 x .725 TF

$5.75

37

74-1810

WASHER

$0.59

39

36-4780

Washer

$8.51

40

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

41

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

42

116-2221

PLATE,WEAR

$8.15

43

114439

Rivet

$1.55

44

126-2335

COVER-SHAFT-DRIVE

$6.47

47

27-0220

SCREW-SPECIAL

$8.51

48

116-3539-03

TRANSMISSION PLATE ASM

$56.09

49

3257-1

Key-Woodruff 1/8 x 1/2

$2.98

50

39-6740

PULLEY

$54.99

51

3296-5

Nut-Nyloc 3/8-24 Thin

$3.71

52

36-4792

Washer-Thrust

$1.55

53

3256-45

Washer-Flat

$0.74

54

116-1438

SPRING,COMPRESSION

$3.11

55

138-3233

MOUNT-BEARING

$5.75

56

104-8699

BEARING-BALL

$5.03

57

9266714

Screw-HWH 1/4-20 x .50

$1.55
