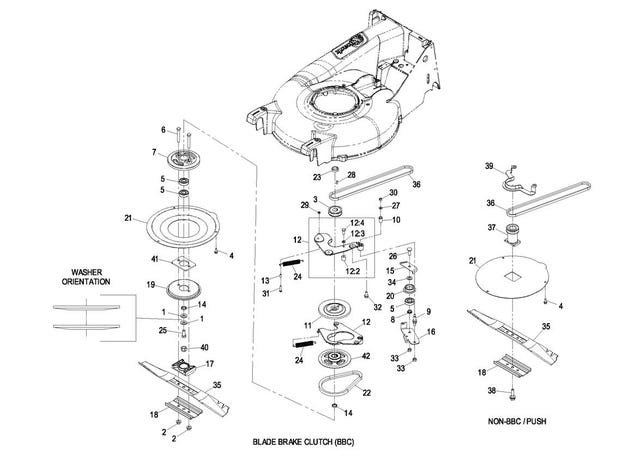

eXmark MN EC21ASHN Blade Assembly

1

1-603610

Washer-Spring Disc 7/16

$5.75

2

54-9190

Nut-Hex 3/8-24 Lock

product not available CALL FOR AVAILABILITY

$1.00

3

56-6180

PULLEY-DRIVER

$50.59

4

32144-85

Screw-HWH 1/4-20 x .62

$2.07

5

38-7820

BEARING-BALL

$14.29

6

104-5937

Screw-HH 3/8-24 x 2 3/4

$4.79

7

126-8108

DRUM

$57.19

8

107-0758

SPACER-BEARING

$3.47

9

107-0759

BOLT-SHOULDER

$11.99

10

107-0797

BUSHING

$7.07

11

107-4277

PULLEY- DRIVER, UPPER

product not available CALL FOR AVAILABILITY

$1.00

12

109-7243

PLATE,ANCHOR

$25.29

12:2

116-3567

Spacer

$21.99

12:3

3253-4

Washer-Lock 5/16

$0.97

12:4

322-3

Screw-HH 5/16-18 x 3/4

$1.11

13

107-4292

SPACER-BBC

$8.87

14

107-4293

SPACER-PLATE, BBC

$13.19

15

138-3222

PLATE-GUIDE

$3.95

16

125-1063

PLATE-BRAKE

$24.19

17

107-7487

SUPPORT-BLADE

$23.09

18

108-3766-03

SUPPORT-BLADE

$11.99

19

138-3225

DISK

$13.19

20

138-3217

RETAINER-BELT

$3.47

21

116-3360-03

COVER-BBC

$63.79

22

110-1790-SL

BELT WITH SLEEVE

$31.89

23

110-2142

SPACER-PULLEY

$23.09

24

108-3792

SPRING-TENSION, BRAKE

$12.09

25

3212-4

Screw-HH 7/16-20 x 1

$3.59

26

3231-38

Bolt-Carriage 3/8-16 x 1 1/4

$8.51

27

3256-16

Washer-#12 Std

$0.59

28

3257-17

Key-Woodruff 5/32 X 21/32

$6.71

29

3296-27

Nut-Lock #10-32

$1.81

30

3296-42

Nut-Nyloc 1/4-20

$0.59

31

32144-9

Screw-HWH #10-32 x 1 Taptite

$5.75

32

33104-020

Screw-HH M8-1.25 x 20mm

$3.95

33

603773

Nut-Hex 3/8-16 Side Lock

$2.98

34

605256

SPACER

$2.98

35

133-8182-S

SPK,BLADE-EXTREME 21"

$20.89

36

109-7299-SL

BELT,3L P21 DRIVE WITH SLEEVE

$28.59

37

109-7257

BLADE-ADAPTER

$59.39

38

125-2466

BOLT-BLADE

$3.71

39

108-8110-03

GUIDE-BELT

$16.49

40

108-9342

Nut-Hex M14-1.5 Lock

$5.75

41

116-2666

SPACER

$13.19

42

110-7456

PULLEY

$57.19



115-4471

SPRING-EXTENSION

$21.99



116-3503-03

COVER-AS

$47.29



116-3572

PLATE-MOUNTING, BBC

$50.59



109-7259

ADAPTER-BLADE DRIVER .25 KEY

$60.49



145-5695

BOLT-BLADE, SEMS

$3.59
