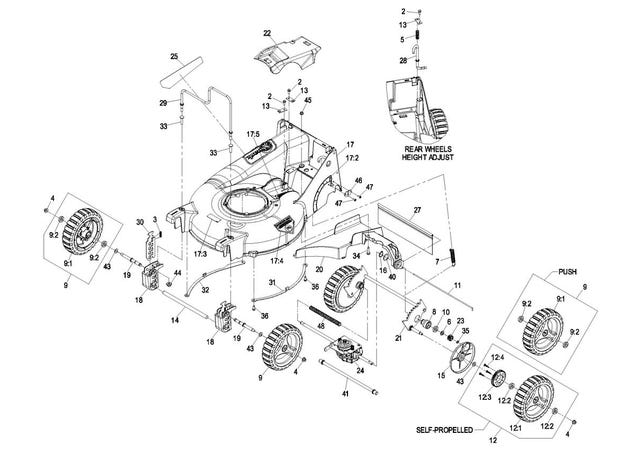

eXmark MN EC21KABBCX Deck And Wheel Assembly

#
Part #
Item
Price
Qty
Add
2
32144-85
Screw-HWH 1/4-20 x .62
$2.07
3
109-7258
SPRING-COMPRESSION
$3.11
4
104-8301
Nut-Nyloc 3/8-16 Flg
$1.55
5
109-7694
SPRING-COMPRESSION
$7.31
6
108-5059
SPACER-BUSHING
$8.51
7
109-7692
SPRING-EXTENSION
$7.07
8
116-6172
HOUSING ASM
$19.79
9
126-7347
WHEEL ASM, 9" W/BEARINGS
$80.99
11
109-8025
ROD,SHIELD
$12.09
12
135-0203
KIT, REAR WHEEL AND COVER 9"
$88.99
12:1
126-7345
WHEEL ASM, 9"
$71.49
12:2
52-2450
Bearing-Ball
$18.69
12:3
109-7264
GEAR
$26.39
12:4
27-6260
SCREW-DRIVE
$1.55
13
109-8441
BRACKET,MOUNT
$6.11
14
109-8454
ROD,BUMPER
$18.69
15
109-9287
COVER,GEAR
$12.09
16
32151-36
Ring-Retaining
$5.15
17
142-8690
ASM-DECK EC21
$306.99
17:2
116-1922
DECAL-HEIGHT OF CUT
$7.79
17:3
68-7410
DECAL-BLADE
$11.99
17:4
94-8072
DECAL-DANGER
$7.07
17:5
109-9317
DECAL-COVER MISSING
$5.51
18
109-9302
BLOCK,FRONT QUADRANT
$24.19
19
116-0994
AXLE-WHEEL
$12.09
20
116-9646-01
BRACKET-TRANSMISSION AND CHUTE
$56.09
21
109-9312
WLD,REAR AXLE P21
$112.99
22
109-9324
COVER,BELT
$16.49
23
131-5399
GEAR-PINION, 15T
$5.75
24
116-0103
ASM,TRANSMISSION W/BRACKET
$240.99
25
116-0245
Decal, Commercial 21 AS
$24.19
26
116-0250
Brush-Belt Guide

product not available CALL FOR AVAILABILITY

$0.01
27
116-0252
SHIELD-TRAILING P21
$32.99
28
116-0329
ROD-HEIGHT ADJ P21
$9.59
29
116-0522
GUARD,ENGINE
$37.39
30
109-9292
PLATE, FRONT HEIGHT
$16.49
31
116-0995-03
SKID,LH
$45.09
32
116-0996-03
SKID,RH
$45.09
33
109-8449
Bolt-Carriage 3/8-16 x 1 1/2
$3.24
34
32144-49
Screw-HWH 5/16-18 1 1/4 TF
$5.75
35
32151-61
Ring-Retaining
$3.11
36
613381
Screw-Button Head 5/16-18 x .725 TF
$5.75
40
74-1810
WASHER
$0.59
41
109-9307
SPACER-HOUSING
$40.69
43
36-4780
Washer
$8.51
44
109-6658
Nut-Nyloc 3/8-16 Flg
$1.55
45
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
46
116-2221
PLATE,WEAR
$8.15
47
114439
Rivet
$1.55
48
117-5260
Cover-Shaft, Drive
$2.98

116-0246
Decal, Commercial 21
$21.99
