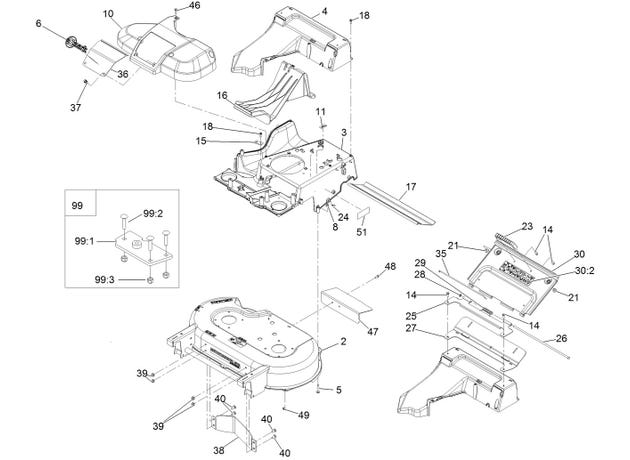

eXmark MN ECS180CKA30000 Deck, Frame, and Chute Assembly

2

126-7582

DECK-30, W/DECALS

$388.99

3

140-3978

30 IN. FRAME AND SPACER ASM

$171.99

4

133-8177

CHUTE

$59.39

5

3230-5

Bolt-Carriage 5/16-18 x 1 3/4

$1.11

6

126-6575

DECAL-EXMARK LOGO

$6.11

8

3296-29

Nut-Nyloc 5/16-18

$2.72

10

139-5406

COVER-BELT

$37.39

11

126-4345

DECAL-PATENT

$1.55

14

46-8091

Screw-HWH 1/4-10 x .82 Plastite

$4.31

15

138-3224

BRACKET-CABLE, TRACTION

$2.98

16

120-5225

PLUG-MULCH

$30.79

17

121-5841

SHIELD-TRAILING

$23.09

18

49-2040

Screw-HWH 1/4-20 x 3/4 TF

$2.59

21

1-513658

BUMPER

$7.07

23

65-5100

HANDLE-DOOR

$10.07

24

117-1092

SCREW-PTH

$1.55

25

116-6351-03

BRACKET-HINGE

$40.69

26

116-6933

PIN-HINGE

$9.95

27

116-6229

SEAL-DOOR

$21.99

28

32151-72

RING-RETAINING

$2.07

29

116-7573

SPRING-TORSION, COVER

$5.75

30

116-8355

REAR DOOR ASM

$67.09

30:2

116-7583

DECAL-WARNING

$14.29

35

116-6966

CLIP-SEAL

$7.07

36

121-5793-03

DOOR-ACCESS

$16.49

37

121-5840

FASTENER

$7.07

38

130-2352-01

BAFFLE-CONTROL

$27.49

39

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

40

3274-55

Screw-Button Head 5/16-18 x 3/4

$5.75

46

32144-86

Screw-HWH 1/4-20 x 1 TF

$1.68

47

126-6381-01

DEFLECTOR-REAR

$21.99

48

32144-85

Screw-HWH 1/4-20 x .62

$2.07

51

133-8062

DECAL-SPARK ARRESTOR

$2.98

99

125-5072

FRAME PLATE KIT

$45.09

99:1

125-2542

PLATE-FRAME

$40.69

99:2

3229-3

Bolt-Carriage 1/4-20 x 1 1/4

$5.75

99:3

3296-42

Nut-Nyloc 1/4-20

$0.59
