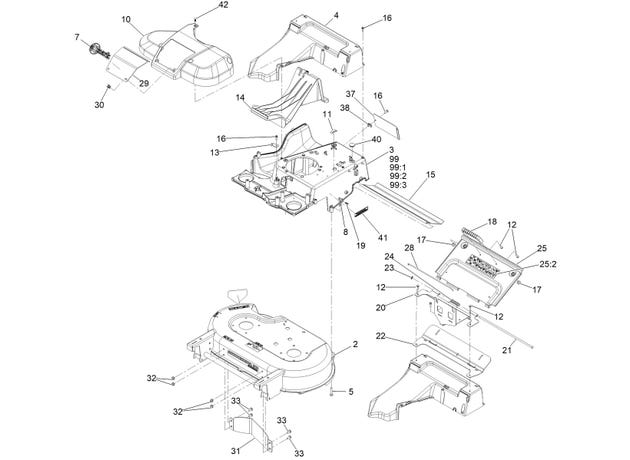

eXmark MN ECX200CKC30000 Deck, Frame, and Chute Assembly

2

142-2491

DECK-30, X-SERIES W/DECALS

$377.99

3

145-3920-01

FRAME-30"

$201.99

4

133-8177

CHUTE

$59.39

5

3230-5

Bolt-Carriage 5/16-18 x 1 3/4

$1.11

7

126-6575

DECAL-EXMARK LOGO

$6.11

8

3296-29

Nut-Nyloc 5/16-18

$2.72

10

139-5406

COVER-BELT

$37.39

11

126-4345

DECAL-PATENT

$1.55

12

46-8091

Screw-HWH 1/4-10 x .82 Plastite

$4.31

13

138-3224

BRACKET-CABLE, TRACTION

$2.98

14

120-5225

PLUG-MULCH

$30.79

15

121-5841

SHIELD-TRAILING

$23.09

16

49-2040

Screw-HWH 1/4-20 x 3/4 TF

$2.59

17

1-513658

BUMPER

$7.07

18

65-5100

HANDLE-DOOR

$10.07

19

117-1092

SCREW-PTH

$1.55

20

142-8180-03

WELD-TANK MOUNT

$62.69

21

116-6933

PIN-HINGE

$9.95

22

116-6229

SEAL-DOOR

$21.99

23

32151-72

RING-RETAINING

$2.07

24

116-7573

SPRING-TORSION, COVER

$5.75

25

116-8355

REAR DOOR ASM

$67.09

25:2

116-7583

DECAL-WARNING

$14.29

28

116-6966

CLIP-SEAL

$7.07

29

121-5793-03

DOOR-ACCESS

$16.49

30

121-5840

FASTENER

$7.07

31

130-2352-01

BAFFLE-CONTROL

$27.49

32

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

33

3274-55

Screw-Button Head 5/16-18 x 3/4

$5.75

37

138-5332-01

COVER-FRAME

$9.35

38

107069

Nut-Retainer-Panel 1/4-20

$2.98

40

126-7151

PLUG-BUTTON

$5.75

41

133-8062

DECAL-SPARK ARRESTOR

$2.98

42

140-1341

CLIP-XMAS TREE

$1.68

99

125-5072

FRAME PLATE KIT

$45.09

99:1

125-2542

PLATE-FRAME

$40.69

99:2

3229-3

Bolt-Carriage 1/4-20 x 1 1/4

$5.75

99:3

3296-42

Nut-Nyloc 1/4-20

$0.59
