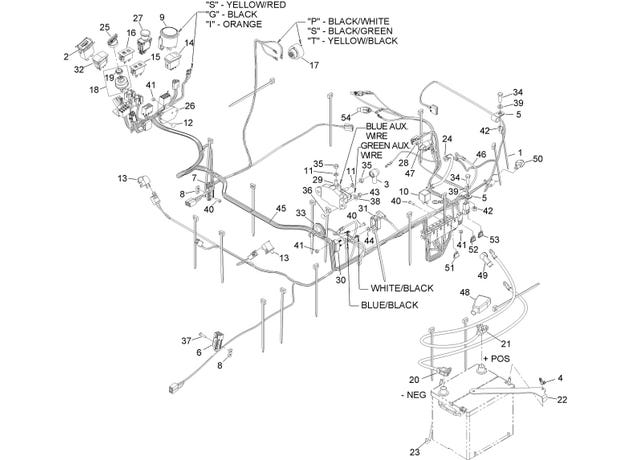

eXmark MN FR25KD Electrical Group

1

3290-378

Tie-Cable

$1.11

2

120-2244

HOURMETER

$71.49

3

1-543393

Insulator-Solenoid

$5.75

4

1-543792

Wingnut-Nyloc 1/4-20

$7.07

5

1-603727

CLIP-LOOM

$3.11

6

1-633110

Switch

$23.09

7

1-633111

Switch

$21.99

8

1-633181

Plate-Tapped

$7.07

9

1-643021

GAUGE-TEMPERATURE

$131.99

10

1-643275

Relay-12VDC 40 Amp

$24.19

11

1-805005

Washer-Lock 5/16 Heavy

$1.55

12

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

13

82-2190

Switch

$15.39

14

109-4813

Switch

$60.49

15

100-8070

Cluster-Lights

$39.59

16

100-8071

Cluster-Lights

$39.59

17

103-0205

ALARM-TONE, DUAL

$69.29

18

109-4736

Asm, Switch W/Nut

$42.89

19

103-0498

Nut-Ignition

$3.59

20

103-1159

Cable-Ground (-)

$26.39

21

109-3075

Cable, Battery (+)

product not available CALL FOR AVAILABILITY

$0.01

22

109-1898-03

Strap, Battery

product not available CALL FOR AVAILABILITY

$0.01

23

103-1312

Bolt-Holddown

$7.07

24

103-1349

CABLE-ENGINE NEGATIVE

$17.59

25

103-2106

Key-Exmark Logo

$5.75

26

103-5218

MODULE-DELAY, SEAT

$46.19

27

103-5221

Switch-PTO

$59.39

28

33013-00

Nut-Whizlock M8-1.25

$2.85

29

109-0742

Contactor, Reversing Polarity

$338.99

30

109-2398

Breaker, Circuit 40A

$36.29

31

109-2571

Cover, Circuit Breaker

$5.51

32

110-0811

SWITCH-ROCKER ON-NONE-(ON)

$72.59

33

240-3

GROMMET-RUBBER

$17.59

34

322-5

Screw-HH 5/16-18 x 1

$0.74

35

3219-2

Nut-Hex 5/16-24

$1.11

36

3229-2

Bolt-Carriage 1/4-20 x 1

$3.47

37

3250-27

Screw-PPH #10-24 x 7/8

$0.83

38

3256-22

Washer-1/4 SAE

$0.59

39

3256-23

Washer-5/16 SAE

$2.59

40

3290-500

Screw-PPH #10-24 x 5/8

$1.55

41

3296-2

Nut-Nyloc #10-24

$2.46

42

3296-29

Nut-Nyloc 5/16-18

$2.72

43

3296-42

Nut-Nyloc 1/4-20

$0.59

44

32149-8

Nut-Keps 10-32 Unf YZ

$1.39

45

109-1212

Harness, Wiring

$781.99

46

109-2589

Harness, Auxiliary Hydraulics

$83.99

47

1-643178

CAP-INSULATOR, RED

$5.75

48

103-1340

INSULATOR-TERMINAL, BATTERY

$5.75

49

103-1420

INSULATOR-STARTER

$7.31

50

100-4918

DIODE

$20.89

51

109355

FUSE-BLADE, 15 AMP

$3.71

52

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

53

103-1368

FUSE-40 AMP

$5.75

54

103-7886

SENDER,TEMPERATURE

$82.49
