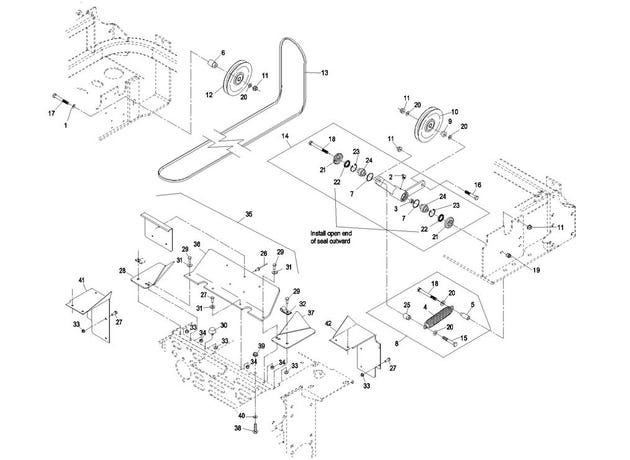

eXmark MN LAS28KA524 Engine Deck Group - All Units

2

302-40

Zerk-90° 1/4-28

$3.59

3

103-5677

Spacer

$2.98

4

116-6316

SPRING-EXTENSION

$23.09

5

109-3141

Spacer, Spring Mount

$13.19

6

103-2627

Bushing-Idler

$3.83

7

106-7159

O-Ring

$1.25

8

109-3766

Kit, Mule Idler Spring

$102.99

9

1-603496

BUSHING-IDLER

$7.91

10

1-603805

PULLEY-IDLER

$56.09

12

1-633166

PULLEY-IDLER

$58.29

13

103-4014-SL

BELT,B 116.1" WITH SLEEVE

$101.99

14

103-5695

Kit, Idler Arm W/Bearings

$115.99

15

323-10

Screw-HH 3/8-16 x 2

$0.97

17

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

18

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

19

3296-39

Nut-Nyloc 3/8-16

$2.98

20

3256-24

Washer-3/8 SAE

$0.83

21

103-2916

Guard-Top

$2.98

22

103-3506

Seal-Single Lip

$5.75

23

32120-10

Ring-Retaining

$1.68

24

103-3504

Bearing-Spherical

$24.19

25

1-633456

BUSHING-IDLER

$5.39

26

1-803035

Rivet 3/16 x 1/4

$1.55

27

321-4

Screw-HH 1/4-20 x 3/4

$1.39

28

103-6619-03

SUPPORT-FRONT COVER, RH

$23.09

29

321-6

Screw-HH 1/4-20 x 1

$0.74

30

109-2365

BUMPER-RUBBER

$5.75

31

3256-2

Washer-1/4 Std

$0.59

32

1-633396

Clip-Loom 5/8

$5.75

33

32128-33

Nut-Whizlock 1/4-20

$0.97

34

3296-42

Nut-Nyloc 1/4-20

$0.59

35

1-644276

SHIELD ASM

$98.99

36

103-1308

SHIELD-ENGINE

$31.89

37

103-6620-03

SUPPORT-FRONT COVER, LH

$23.09

38

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

39

3290-357

Nut-Whizlock 3/8-16

$1.11

40

98-5975

Washer-Spring Disc 3/8

$3.71

41

1-644316

RH SHIELD ASM

product not available CALL FOR AVAILABILITY

$0.01

42

1-634796

LH SHIELD ASM

product not available CALL FOR AVAILABILITY

$0.01



103-3341

Asm, Shield W/Decals

$100.99
