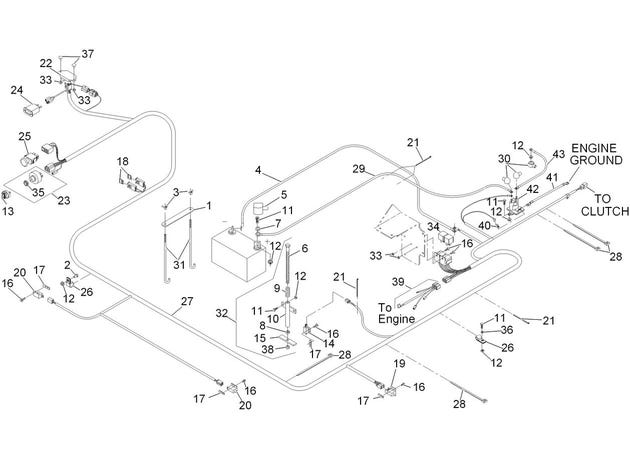

eXmark MN LZ23KC605 Electrical Group - 28HP Kawasaki Serial Numbers 688,160 – 688,329

1

107-9277-03

Strap-Battery Hold Down

$7.07

2

321-2

Screw-HH 1/4-20 x 1/2

$3.71

3

1-543792

Wingnut-Nyloc 1/4-20

$7.07

4

1-633307

Cable-Ground (-)

$41.79

5

1-543391

INSULATOR-BATTERY

product not available CALL FOR AVAILABILITY

$0.01

6

1-800282

Screw-HH 5/16-18 x 7

$5.75

7

3256-2

Washer-1/4 Std

$0.59

8

3217-6

Nut-Hex 5/16-18

$1.55

9

1-523415

Spring

$34.09

10

1-522424-03

MOUNT-SPRING, SEAT

$35.19

11

321-4

Screw-HH 1/4-20 x 3/4

$1.39

12

32128-33

Nut-Whizlock 1/4-20

$0.97

13

103-2106

Key-Exmark Logo

$5.75

14

1-513152

Switch-N.C.

$14.29

15

1-513180

PLATE-SWITCH, SEAT

$17.59

16

3290-500

Screw-PPH #10-24 x 5/8

$1.55

17

1-633181

Plate-Tapped

$7.07

18

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

19

1-633111

Switch

$21.99

20

1-513051

Switch-N.O.

$19.79

21

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

22

103-5218

MODULE-DELAY, SEAT

$46.19

23

109-4736

Asm, Switch W/Nut

$42.89

24

1-513374

Meter-Engine Hours

$76.60

25

103-5221

Switch-PTO

$59.39

26

1-633396

Clip-Loom 5/8

$5.75

27

109-0125

Harness, Wiring

$346.99

28

1-303335

Tie-Cable 7 15/16 (Large)

product not available CALL FOR AVAILABILITY

$0.01

29

1-523281

WIRE-STARTER

product not available CALL FOR AVAILABILITY

$0.01

30

1-543393

Insulator-Solenoid

$5.75

31

1-633651

BOLT-HOLDDOWN

$8.75

32

103-5652

Asm, Seat Switch Actuator

$91.99

33

3296-2

Nut-Nyloc #10-24

$2.46

34

1-643275

Relay-12VDC 40 Amp

$24.19

35

103-0498

Nut-Ignition

$3.59

36

3256-22

Washer-1/4 SAE

$0.59

37

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

38

3296-29

Nut-Nyloc 5/16-18

$2.72

39

1-613262

HARNESS,WIRING 19KA

$38.49

40

109-6632

Adapter, Spade

product not available CALL FOR AVAILABILITY

$1.00

41

109-6631

Wire-Ground

product not available CALL FOR AVAILABILITY

$1.00

42

1-513075

SWITCH-SOLENOID

$18.03

43

1-633306

CABLE-STARTER, POSITIVE

product not available CALL FOR AVAILABILITY

$0.01



1-603511

Key-Ignition

$2.72
