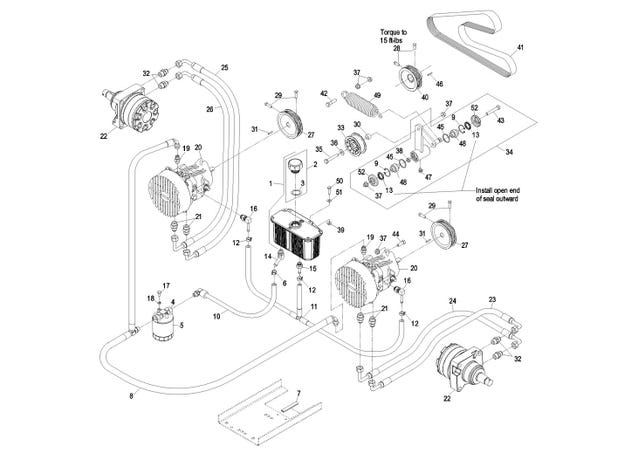

eXmark MN LZ28KA605 Hydraulic Group All Units Except 31HP Briggs & Stratton

1

103-1947

HYD Reservoir ASM

$221.99

2

103-7615

Asm, Cap W/Gasket

$30.79

3

142-2792

O-RING

$1.68

4

104-7836

Filter-Head

$16.49

5

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

6

103-1988

Clamp-Hose 11/16

$1.55

7

105-7699

STRIP-SEAL

$10.07

8

109-6273

HYD HOSE ASM

$110.99

9

32120-10

Ring-Retaining

$1.68

10

109-7689

HYD HOSE ASM

$43.99

11

103-1806

HYD Hose ASM

$41.79

12

103-1716

Clamp-Hose 17/32

$1.55

13

103-3506

Seal-Single Lip

$5.75

14

103-1807

FITTING-BARBED, 45 DEG

$28.59

15

103-1801

Adapter-Straight

$31.89

16

103-1799

ELBOW-90 DEG

$30.79

17

321-3

Screw-HH 1/4-20 x 5/8

$1.55

18

1-805004

Washer-Lock 1/4 Heavy

$1.55

19

103-2156

Adapter-Straight

$42.89

20

116-2445

PUMP-HYD

$1,205.99

21

1-603990

Adapter-Straight

$18.69

22

1-523328

MOTOR-WHEEL

$1,207.99

23

103-3733

HYD HOSE ASM

$91.99

24

103-3735

HYD HOSE ASM

$91.99

25

103-3736

HYD HOSE ASM

$91.99

26

103-3737

HYD HOSE ASM

$91.99

27

109-6046

SHEAVE

$180.99

28

1-803050

Setscrew-5/16-18 x 3/4

$2.98

29

30-1710

Setscrew-5/16-18 x 1

$12.09

30

1-603050

Spacer

$7.91

31

5-1077

Key-Machine 3/16 SQ x 1

$6.95

32

1-603991

Adapter-Straight

$21.99

33

109-4076

PULLEY-FLAT IDLER

$17.59

34

103-5694

Kit, Idler Arm (103-4595-03) W/Bearings

$130.99

35

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

36

3256-4

Washer-3/8 Std

$1.94

37

3290-357

Nut-Whizlock 3/8-16

$1.11

38

103-5677

Spacer

$2.98

39

32128-33

Nut-Whizlock 1/4-20

$0.97

40

109-7738

SHEAVE

$86.99

41

109-6112-SL

BELT WITH SLEEVE

$38.49

42

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

43

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

44

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

45

106-7159

O-Ring

$1.25

46

13-2840

Key-Machine 1/4 x 1/4 x 1 1/4

$1.94

47

302-40

Zerk-90° 1/4-28

$3.59

48

103-3504

Bearing-Spherical

$24.19

49

116-6317

SPRING-EXTENSION

$28.59

50

321-6

Screw-HH 1/4-20 x 1

$0.74

51

3256-22

Washer-1/4 SAE

$0.59

52

103-2916

Guard-Top

$2.98



237-42

O-RING

$3.24



103-1020

O-Ring-37 Flare #6

$1.55



104-5311

BEARING-BALL

$45.09



94-6922

BEARING-THRUST

$63.79



103-7443

CYLINDER BLOCK KIT

$325.99



105-6184

SEAL OVERHAUL KIT

$81.39



103-7488

PUMP-COOLING

$75.89



1-523541

ELEMENT-FILTER, WINTER

$50.59



103-7489

GUARD-PUMP

$82.99



103-2741

SHOCK VALVE KIT

$35.40



112-4155

SHOCK VALVE KIT

$146.99



1-603920

O-Ring-SAE #8

$3.95



1-603992

O-Ring-37 Flare #8

$2.98



103-6995

OUTPUT SHAFT and SEALS KIT

$586.99



103-6994

SEAL KIT

$289.99



1-603919

O-Ring-SAE #10

$3.83
