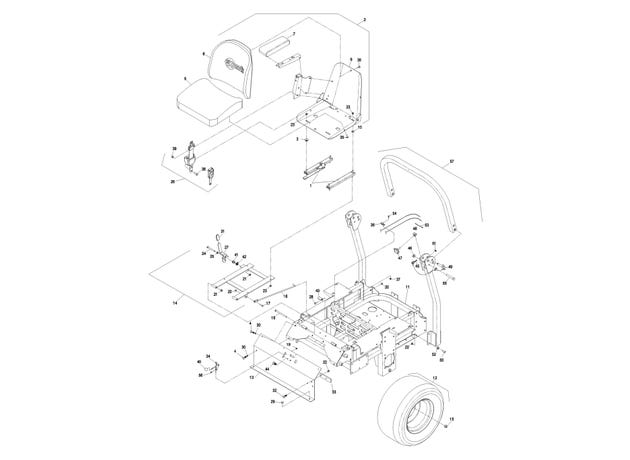

eXmark MN LAS23KC524 Mainframe Group

1

1-643255

TRACK-SEAT

$190.99

2

103-3524

Seat

$602.99

3

1-543401

Spacer-Seat Track

$5.39

4

322-3

Screw-HH 5/16-18 x 3/4

$1.11

5

103-3521

CUSHION,SEAT BOTTOM

$227.99

6

103-3520

Seat, Back

$206.99

7

103-0292

Cushion, Armrest RH

$86.99

8

103-0291

Cushion, Armrest LH

$86.99

9

1-633859

FRAME-SEAT

$168.99

10

3256-3

Washer-5/16 Std

$0.74

11

109-3966

Asm, Frame (109-3965-03) W/Decals

$2,967.99

12

109-3339

Asm, Wheel & Tire

$327.99

13

109-1907

Asm, Console (109-0647-03) W/Decals

product not available CALL FOR AVAILABILITY

$0.01

14

103-4423

Asm, Seat Frame

$183.99

15

242-50

Nut-Lug 1/2-20

$2.11

16

1-633293

ROD-HOLDUP, SEAT

$15.39

17

322-5

Screw-HH 5/16-18 x 1

$0.74

18

323-39

Screw-HH 3/8-16 x 5

$12.09

19

3296-2

Nut-Nyloc #10-24

$2.46

20

3296-29

Nut-Nyloc 5/16-18

$2.72

21

3296-39

Nut-Nyloc 3/8-16

$2.98

22

3290-357

Nut-Whizlock 3/8-16

$1.11

23

32128-20

Nut-Whizlock 5/16-18

$1.39

24

323-20

Screw-HH 3/8-16 x 3-1/4

$3.95

25

3256-24

Washer-3/8 SAE

$0.83

26

110-0883

RETRACTABLE SEATBELT KIT

$253.99

27

107-3083

LATCH ASM

$27.49

28

322-4

Screw-HH 5/16-18 x 7/8

$0.83

29

1-513658

BUMPER

$7.07

30

3256-23

Washer-5/16 SAE

$2.59

31

103-4434

GRIP-LEVER

$2.98

33

1-633964-03

STOP-BRAKE, PARK

$13.19

34

1-633696

THROTTLE CABLE ASM

$63.79

35

103-8383

Screw-HWH 1/4-20 x 3/4 Taptite

$2.98

36

1-513762

Clip-Loom 1/2

$8.51

37

32128-33

Nut-Whizlock 1/4-20

$0.97

38

3212-4

Screw-HH 7/16-20 x 1

$3.59

39

3296-38

NUT-LOCK, NI

$2.98

40

1-513592

Knob-Ball Red

$7.07

41

107-0075

Bushing

$5.75

42

107-0076

SPRING-TORSION

$14.29

43

107-3058

Catch-Latch, Seat

$7.55

44

1-603336

CONTROL-CHOKE

$41.79

45

107-3155

Hairpin

$7.19

46

32128-23

Nut-Hex 1/2-13 Side Lock

$2.33

47

106-0887

KNOB

$9.35

48

107-3124

CLIP

$5.75

49

103-4553

ROPS FOLD PIN ASM

$71.49

50

323-6

Screw-HH 3/8-16 x 1

$2.98

51

107-3154

Nut-Push 3/8-16

$1.55

52

98-5975

Washer-Spring Disc 3/8

$3.71

53

321-6

Screw-HH 1/4-20 x 1

$0.74

54

3290-378

Tie-Cable

$1.11

55

325-13

Screw-HH 1/2-13 x 3 1/4

$8.15

56

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

57

103-8436

Kit, ROPS LZ

$314.99



109-3338

Wheel

$162.99



1-633008

TIRE - 23X10.5-12,4PLY

$92.15



116-1685

KIT, SEAT TRACK SPRING

$36.29
