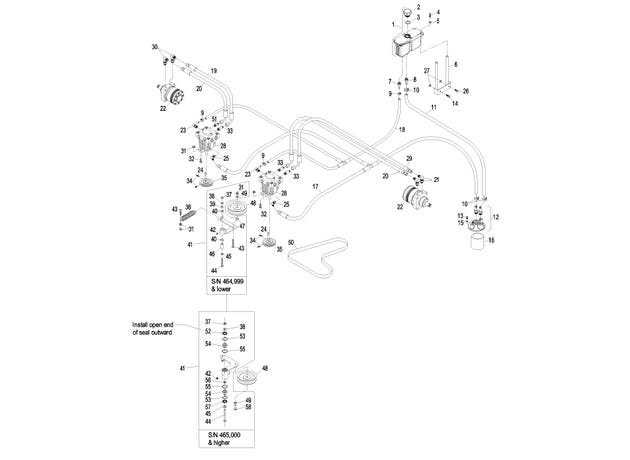

eXmark MN LCT5219KA Hydraulic Group

1

103-1947

HYD Reservoir ASM

$221.99

2

103-7615

Asm, Cap W/Gasket

$30.79

3

142-2792

O-RING

$1.68

4

321-6

Screw-HH 1/4-20 x 1

$0.74

5

3256-22

Washer-1/4 SAE

$0.59

6

103-3071-03

STAND-RESERVOIR

$53.89

7

103-1801

Adapter-Straight

$31.89

8

103-1912

Adapter-Straight

$23.09

9

103-1716

Clamp-Hose 17/32

$1.55

10

103-1988

Clamp-Hose 11/16

$1.55

11

103-3077

HYD HOSE ASM

$12.09

12

103-2889

Filter Head ASM

$99.99

13

321-3

Screw-HH 1/4-20 x 5/8

$1.55

14

322-5

Screw-HH 5/16-18 x 1

$0.74

15

1-805004

Washer-Lock 1/4 Heavy

$1.55

16

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

17

103-2930

HYD HOSE ASM

$75.99

18

103-2357

HYD HOSE ASM

$49.49

19

103-4021

HOSE-REAR, RH

$75.99

20

1-653187

HOSE-REAR, RH

$80.29

21

103-2153

Elbow-90°

$50.59

22

103-4695

MOTOR-WHEEL

$1,012.99

23

103-1799

ELBOW-90 DEG

$30.79

24

1-807272

Key-5mm x 5mm x 25mm

$6.35

25

103-1802

FITTING-ELBOW, 90 DEG

$24.19

26

322-3

Screw-HH 5/16-18 x 3/4

$1.11

27

32128-20

Nut-Whizlock 5/16-18

$1.39

28

103-4040

PUMP-HYDRAULIC

$1,036.99

29

103-4022

HOSE-REAR, LH

$78.99

30

103-4797

ELBOW-90 DEG

$52.79

31

3290-357

Nut-Whizlock 3/8-16

$1.11

32

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

33

103-1940

Adapter-Straight

$23.09

34

1-803050

Setscrew-5/16-18 x 3/4

$2.98

35

1-653156

PULLEY

$70.39

36

103-1767

Spring-Extension

$17.59

37

3296-39

Nut-Nyloc 3/8-16

$2.98

38

98-5975

Washer-Spring Disc 3/8

$3.71

39

63-8410

Washer

$1.81

40

103-4681

SLEEVE-BEARING

$5.75

41

109-4311

Kit, Idler Arm W/Bearings

$174.99

42

302-40

Zerk-90° 1/4-28

$3.59

43

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

44

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

45

3256-4

Washer-3/8 Std

$1.94

46

1-603044

BUSHING

$15.39

47

1-603496

BUSHING-IDLER

$7.91

48

132-4718

PULLEY-IDLER, FLAT

$34.09

49

3256-24

Washer-3/8 SAE

$0.83

50

103-4760-SL

BELT-COG WITH SLEEVE

$47.29

51

103-4020

ADAPTER-STRAIGHT

$31.89

52

103-3506

Seal-Single Lip

$5.75

53

32120-10

Ring-Retaining

$1.68

54

103-3504

Bearing-Spherical

$24.19

55

106-7159

O-Ring

$1.25

56

103-5677

Spacer

$2.98

57

103-3505

SEAL-LIP, DOUBLE

$5.75

58

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55



1-000138

BEARING AND SEAL KIT

$285.99



1-000119

SEAL KIT

$176.99



1-603992

O-Ring-37 Flare #8

$2.98



1-603920

O-Ring-SAE #8

$3.95



1-523541

ELEMENT-FILTER, WINTER

$50.59



237-42

O-RING

$3.24



103-2664

INPUT SHAFT KIT

$211.99



94-6922

BEARING-THRUST

$63.79



103-2666

CYLINDER BLOCK KIT

$459.99



105-6184

SEAL OVERHAUL KIT

$81.39



103-4237

Kit, Shock Valve 2300psi

$286.99



98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75



1-850337

Exmark red touch up spray paint

$31.89
