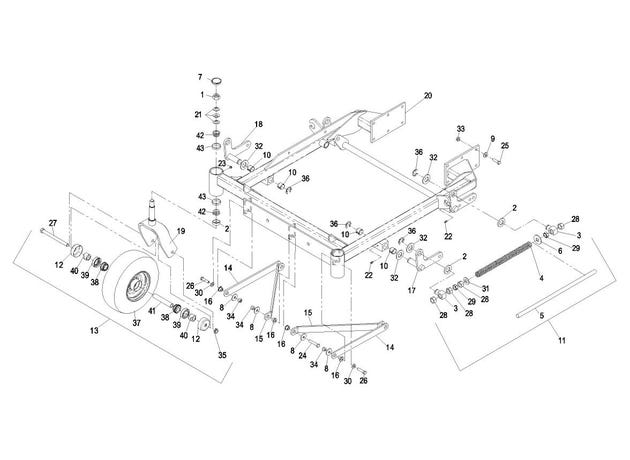

eXmark MN LCT4818BV Front Frame Group

1

3296-51

Nut-Nyloc 3/4-10

$7.19

2

1-543511

Seal-Grease

$12.09

3

1-633441

SWIVEL-DECK MOUNT, REAR

$27.49

4

1-653009

SPRING-COMPRESSION

$17.59

5

1-653011

ROD-LIFT, DECK

$21.99

6

1-805517

Washer-5/8 Type B Wide

$6.71

7

103-4882

CAP-GREASE

$8.51

8

63-8410

Washer

$1.81

9

98-5975

Washer-Spring Disc 3/8

$3.71

10

103-1982

Bushing, Spring

product not available CALL FOR AVAILABILITY

$0.01

11

103-1987

Front Spring ASM

product not available CALL FOR AVAILABILITY

$0.01

12

103-2768

Guard-Seal

$3.95

13

103-3800

WHEEL AND TIRE ASM

$207.99

14

103-3898

Flat, Strut

$24.19

15

103-3899

Flat, Strut Angle

$27.49

16

103-3900

SPACER-STRUT

$8.87

17

103-3902-01

Wld, Shaft LH

product not available CALL FOR AVAILABILITY

$0.01

18

103-3903-01

Wld, Shaft RH

$57.19

19

103-8618-01

FORK-CASTER

$122.99

20

109-5178-01

Asm, Front Frame

$1,975.99

21

1-633508

Washer-Spring Disc

$3.83

22

302-19

Zerk-1/4-28 Str

$2.85

23

1-811010

Plug

$5.75

24

323-10

Screw-HH 3/8-16 x 2

$0.97

25

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

26

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

27

325-20

Screw-HH 1/2-13 x 6

$8.51

28

3217-11

Nut-Hex 5/8-11

$3.95

29

3218-6

Nut-Jam 5/8-11

$7.31

30

3256-24

Washer-3/8 SAE

$0.83

31

3256-27

Washer-5/8 SAE

$3.11

32

3256-29

Washer-7/8 SAE

$3.11

33

3290-357

Nut-Whizlock 3/8-16

$1.11

34

3296-39

Nut-Nyloc 3/8-16

$2.98

35

3296-45

NUT-HEX

$4.55

36

32151-103

E-Ring

$3.47

37

103-3798

WHEEL AND BEARING ASM

$180.99

38

1-633585

Bearing-Cone Tapered Roller

$21.99

39

103-0063

Seal-Double Lip

$9.95

40

103-3051

Spacer-Nut

$9.59

41

126-5359

CASTER AXLE ASM

$18.69

42

1-543509

Cone-Bearing Tapered Roller

$14.29

43

1-543508

Cup-Bearing Tapered Roller

$8.51



109-5179-01

Asm, Front Frame

$2,164.99
