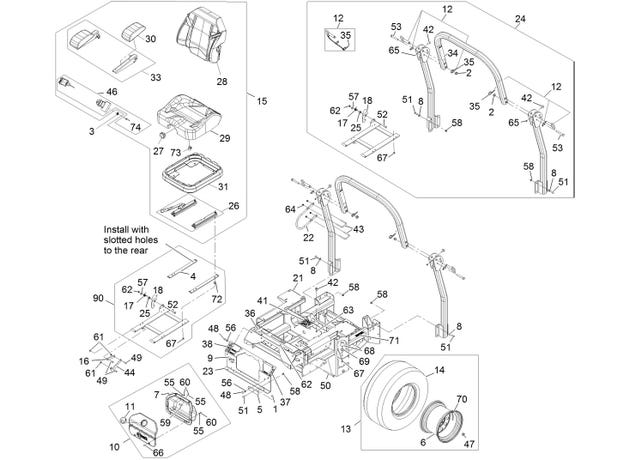

eXmark MN LZDS902K725 Main Frame Assembly

#
Part #
Item
Price
Qty
Add
1
1-513658
BUMPER
$7.07
2
32128-23
Nut-Hex 1/2-13 Side Lock
$2.33
3
1-603610
Washer-Spring Disc 7/16
$5.75
4
1-653282-03
STOP/SPACER-SEAT
$50.59
5
1-633964-03
STOP-BRAKE, PARK
$13.19
6
109-3156
RIM
$213.99
7
1-803075
Screw-Truss Head #10-24 X 3/4
$1.55
8
98-5975
Washer-Spring Disc 3/8
$3.71
9
103-0261
DECAL-VALVE, FUEL
$7.07
10
103-3666
ASM,CUBBY
$152.99
11
103-3790
Latch, Cubby Door
$46.19
12
103-4553
ROPS FOLD PIN ASM
$71.49
13
109-3157
WHEEL AND TIRE ASM
$542.99
14
103-4963
TIRE
$342.99
15
116-8912
KIT-SUSPENSION SEAT
$1,371.99
16
103-5161
LINK-STOP, SEAT
$21.99
17
103-5519
SPRING-TORSION, LATCH
$8.99
18
103-5520
CATCH-LATCH, SINGLE
$158.99
21
109-3984
ASM,KDXS ENGINE DECK W/DECALS
$5,452.99
22
103-7599-03
Guard
$47.29
23
109-2075
Asm, Console W/Decals
$214.99
24
109-0060
KIT, 06 XS ROPS
$314.99
25
107-0075
Bushing
$5.75
26
116-5655
Set-Seat Track
$146.99
27
116-5658
Knob-Adjuster
$31.89
28
116-5656
Cover-Back
$171.99
29
116-5657
Cover-Cushion
$171.99
30
109-9802
ARM REST PAD SET
$215.99
31
116-5659
Cover-Suspension Bellows
$81.99
33
109-9803
ARM REST SET
$433.99
34
107-2102
DECAL-WARNING, FOLDING ROPS
$9.95
35
107-3155
Hairpin
$7.19
36
107-9866
DECAL-CONSOLE, TOP
$61.59
37
109-1214
DECAL,PARK BRAKE
$17.59
38
109-1215
DECAL,DECK HEIGHT
$6.95
41
109-2264
DECAL,WARNING
$13.19
42
109-2365
BUMPER-RUBBER
$5.75
43
109-2394
U-BOLT
$13.19
44
109-2759
LINK-STOP, SEAT
$20.89
46
109-9805
SEAT BELT KIT
$272.99
47
242-50
Nut-Lug 1/2-20
$2.11
48
322-3
Screw-HH 5/16-18 x 3/4
$1.11
49
322-5
Screw-HH 5/16-18 x 1
$0.74
50
323-39
Screw-HH 3/8-16 x 5
$12.09
51
323-6
Screw-HH 3/8-16 x 1
$2.98
52
323-9
Screw-HH 3/8-16 x 1 3/4
$1.68
53
325-13
Screw-HH 1/2-13 x 3 1/4
$8.15
55
3256-14
WASHER-FLAT
$0.59
56
3256-23
Washer-5/16 SAE
$2.59
57
3256-4
Washer-3/8 Std
$1.94
58
3290-357
Nut-Whizlock 3/8-16
$1.11
59
3290-500
Screw-PPH #10-24 x 5/8
$1.55
60
3296-2
Nut-Nyloc #10-24
$2.46
61
3296-29
Nut-Nyloc 5/16-18
$2.72
62
3296-39
Nut-Nyloc 3/8-16
$2.98
63
3296-42
Nut-Nyloc 1/4-20
$0.59
64
3296-69
Nut-Nyloc 5/16-18
$11.99
65
3296-73
Nut-Nyloc 1/4-20
$5.75
66
32122-28
Screw-Truss HD #10-24 X 1
$3.24
67
32128-20
Nut-Whizlock 5/16-18
$1.39
68
1-543963
BUMPER-RUBBER
$24.19
69
63-8410
Washer
$1.81
70
126-2055
DECAL-TORQUE, WHEEL HUB LUG
$7.07
71
117-2718
DECAL-ARRESTER, SPARK
$7.79
72
26-4840
SPACER-PIN, MOUNTING
$7.31
73
82-2190
Switch
$15.39
74
3212-4
Screw-HH 7/16-20 x 1
$3.59
90
109-9228
KIT,SEAT FRAME SERVICE
$361.99
