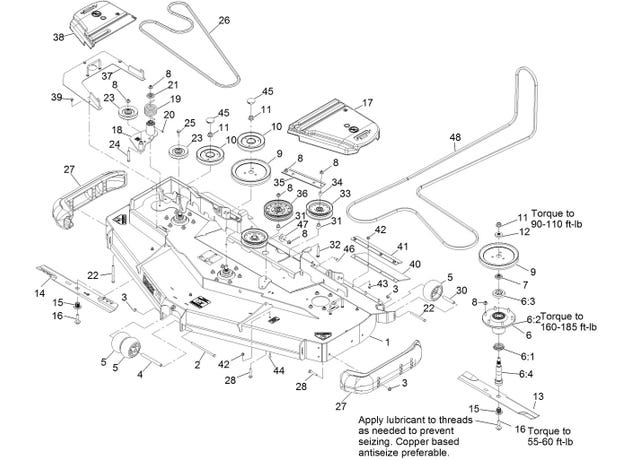

eXmark MN LZDS902K72RD Deck Assembly

1

116-8213

DECK-RD72, W/DECALS

$3,158.99

2

108-5388

SCREW-HH

$16.49

3

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

4

98-5967

SPACER-WHEEL

$16.49

5

1-603299

ROLLER-SCALP, ANTI

$23.09

6

109-6917

ASM,SPINDLE HOUSING

$357.99

6:1

103-9504

GUARD,BOTTOM

$12.09

6:2

103-9539

ASM,CUTTER HOUSING

$343.99

6:3

109-0916

NUT, SPINDLE 7/8-14

$25.29

6:4

109-6881

SPINDLE,DOUBLE SPLINE

$127.99

7

103-9522

SPACER,SPLINED STEPPED

$7.55

8

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

9

109-2180

SHEAVE,BLADE DRIVE 9.00

$54.99

10

116-8193

SHEAVE-RD, REVERSE DRIVE

$176.99

11

109-7033

Nut-Flange 5/8-18 Centerlock

$2.98

12

103-9523

SPACER,SPLINED

$8.99

13

103-6389-S

SPK, BLADE LOW LIFT 24.5 (.94 HOLE)

$39.59

13

103-6404-S

SPK, BLADE NOTCHED 24.5 (.94 HOLE)

$45.09

13

116-5171-S

SPK,BLADE-EXTREME 2, 24.50"

$45.09

14

116-8502

BLADE-LOW LIFT 24.50, RD72

product not available CALL FOR AVAILABILITY

$1.00

14

116-8503-S

SPK,BLADE-EXTREME 2-24.50, RD72

$38.49

15

103-3037

BUSHING,SPLINED

$23.09

16

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

17

109-6938

COVER-BELT, LH

$89.99

18

126-0853

IDLER ASM

$226.99

19

108-1921

SPRING-TORSION

$28.59

20

302-19

Zerk-1/4-28 Str

$2.85

21

103-2916

Guard-Top

$2.98

22

323-23

SCREW-HH

$6.11

23

126-1478

SHEAVE

$51.69

24

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

25

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

26

116-8501

BELT

$116.99

27

112-1479

SKID-BUMPER, DECK

$87.99

28

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

30

98-7912

TUBE-SPANNER

$13.19

31

1-633456

BUSHING-IDLER

$5.39

32

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

33

126-9196

IDLER-PULLEY, FLAT

$62.69

34

121-1760

SPACER

$2.59

35

116-8964-01

GUIDE-RD BELT

$24.19

36

126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$63.79

37

116-9267-01

COVER-RD72 REVERSE DRIVE [RED]

$126.99

38

116-0094

COVER-BELT, RH

$80.99

39

9266934

Screw-HWH 5/16 x 1/2 TF

$9.95

40

116-8288

GUARD-TIRE RD72

$19.79

41

126-0414-01

SUPPORT-OUTER FLAP

$21.99

42

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

43

3230-16

Bolt-Carriage 5/16-18 x 7/8

$2.98

44

3274-55

Screw-Button Head 5/16-18 x 3/4

$5.75

45

116-2253

PLUG,BLACK NYLON 1.75

$3.11

46

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

47

1-633031-01

PLATE,DECK STRUT

$3.24

48

116-9702-SL

BELT-V WITH SLEEVE

$245.99
