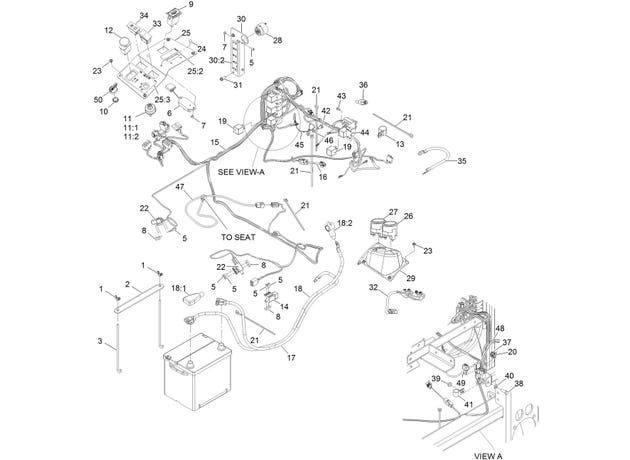

eXmark MN LZS902DKU725A1 Electrical Assembly

1

1-543792

Wingnut-Nyloc 1/4-20

$7.07

2

103-1311-03

HOLDDOWN-BATTERY

$27.49

3

103-1312

Bolt-Holddown

$7.07

5

3290-500

Screw-PPH #10-24 x 5/8

$1.55

6

103-5218

MODULE-DELAY, SEAT

$46.19

7

3296-2

Nut-Nyloc #10-24

$2.46

8

1-633181

Plate-Tapped

$7.07

9

120-2244

HOURMETER

$71.49

10

103-0498

Nut-Ignition

$3.59

11

109-4736

Asm, Switch W/Nut

$42.89

11:1

3254-5

WASHER-LOCK

$1.55

11:2

218-461

NUT-HH

$4.19

12

114-0279

SWITCH-PTO, ON-ON

$60.49

13

1-643312

Clip-Loom

$7.07

14

1-633111

Switch

$21.99

15

116-8236

HARNESS,WIRING-LZDS KUBOTA

$651.99

16

110-8808

HARNESS-WIRE

$37.39

17

109-3074

CABLE-BATTERY NEGATIVE

$69.29

18

109-7607

ASM,POSITIVE BATTERY CABLE

$81.99

18:1

103-1340

INSULATOR-TERMINAL, BATTERY

$5.75

18:2

103-1420

INSULATOR-STARTER

$7.31

19

1-643275

Relay-12VDC 40 Amp

$24.19

20

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

21

3290-378

Tie-Cable

$1.11

22

1-513051

Switch-N.O.

$19.79

23

109-2661

Screw-PPH #10-24 x 1/2

$1.55

24

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

25

116-5139

Asm, Control Panel W/Decals

$41.79

25:2

106-2733

DECAL-THROTTLE

$9.95

25:3

126-4763

DECAL-CONTROL PANEL

product not available CALL FOR AVAILABILITY

$1.00

26

1-643021

GAUGE-TEMPERATURE

$131.99

27

1-643037

GAUGE-VOLTMETER

$195.99

28

103-0205

ALARM-TONE, DUAL

$69.29

29

103-3684

BEZEL, GAGE XP LH TANK

$88.99

30

109-3495

ASM,RELAY BRKT W/ DECALS

$57.19

30:2

126-4759

DECAL-RELAY

product not available CALL FOR AVAILABILITY

$1.00

31

49-2040

Screw-HWH 1/4-20 x 3/4 TF

$2.59

32

103-4339

HARNESS-GAUGE

$59.39

33

110-0811

SWITCH-ROCKER ON-NONE-(ON)

$72.59

34

109-2488

LAMP-WARNING

$70.39

35

103-1349

CABLE-ENGINE NEGATIVE

$17.59

36

103-7886

SENDER,TEMPERATURE

$82.49

37

103-1368

FUSE-40 AMP

$5.75

38

322-5

Screw-HH 5/16-18 x 1

$0.74

39

32128-20

Nut-Whizlock 5/16-18

$1.39

40

3256-23

Washer-5/16 SAE

$2.59

41

1-633396

Clip-Loom 5/8

$5.75

42

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

43

104-2065

Screw-HWH #10-24 x 3/8

$0.83

44

126-4762

DECAL-PTO RELAY

product not available CALL FOR AVAILABILITY

$1.00

45

116-5163

GROUND WIRE ASM

$9.23

46

3255-8

Washer-Lock 5/16 (Ext-Tooth)

$0.14

47

103-1227

HARNESS-WIRING, SEAT

$24.19

48

94-8002

FUSE-BLADE, 50 AMP

$25.29

49

100-4918

DIODE

$20.89

50

103-2106

Key-Exmark Logo

$5.75
