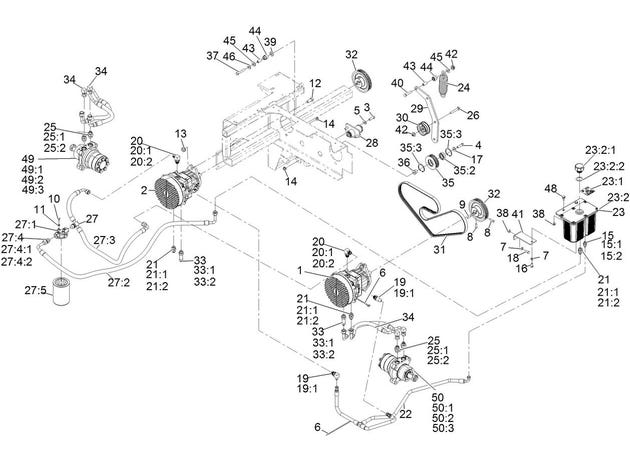

eXmark MN LZS902DKU605A1 Hydraulic Assembly

1

109-7543

PUMP, LH

$1,467.99

2

109-7544

PUMP, RH

$1,467.99

3

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

4

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

5

98-5975

Washer-Spring Disc 3/8

$3.71

6

3290-378

Tie-Cable

$1.11

7

3256-23

Washer-5/16 SAE

$2.59

8

30-1710

Setscrew-5/16-18 x 1

$12.09

9

1-807259

KEY

$2.46

10

321-3

Screw-HH 1/4-20 x 5/8

$1.55

11

1-805004

Washer-Lock 1/4 Heavy

$1.55

12

325-5

SCREW-HH

$1.55

13

32128-49

Nut-Whizlock 1/2-13

$2.33

14

3290-357

Nut-Whizlock 3/8-16

$1.11

15

103-2156

Adapter-Straight

$42.89

15:1

237-42

O-RING

$3.24

15:2

103-1020

O-Ring-37 Flare #6

$1.55

16

322-3

Screw-HH 5/16-18 x 3/4

$1.11

17

3256-4

Washer-3/8 Std

$1.94

18

322-4

Screw-HH 5/16-18 x 7/8

$0.83

19

103-1014

Elbow-90°

$40.69

20

103-2153

Elbow-90°

$50.59

22

109-0087

Asm-Case Drain Hose

$131.99

23

109-0582

HYDRAULIC TANK ASM

$350.99

23:1

115-4212

DECAL-WARNING

$11.99

23:2:1

103-7615

Asm, Cap W/Gasket

$30.79

23:2:2

142-2792

O-RING

$1.68

24

116-6317

SPRING-EXTENSION

$28.59

25

1-603991

Adapter-Straight

$21.99

25:1

237-80

O-RING

$6.83

26

3231-31

Bolt-Carriage 3/8-16 x 2 1/2

$7.91

27

109-6905

ASM, FILTER HD. W/ HOSES

$176.99

27:1

103-2259

HEAD-FILTER

$110.99

27:2

109-6904

ASM, HOSE-FILTER INLET

$146.99

27:3

109-6903

ASM, HOSE-PUMP INLET

$164.99

27:4

1-603990

Adapter-Straight

$18.69

27:4:1

1-603920

O-Ring-SAE #8

$3.95

27:5

103-2146

Element-Hydraulic Oil Filter

$64.89

28

109-3250

KIT,PUMP IDLER

$214.99

29

103-7569-03

ARM,PUMP IDLER

$54.99

30

116-0888

IDLER,FLANGED

$61.59

31

109-7582-SL

BELT, 5K 68.8 WITH SLEEVE

$59.39

32

109-7561

SHEAVE,5K 5.0" PD POLY-V

$109.99

33

103-1940

Adapter-Straight

$23.09

33:1

237-79

O-RING

$6.11

33:2

1-603992

O-Ring-37 Flare #8

$2.98

34

103-4680

HYD HOSE ASM

$142.99

35

103-4728

ASM,LOWER FRAME IDLER

$131.99

35:2

251-347

Bearing-Ball Deep Groove

$11.99

35:3

32151-13

Ring-Retaining

$5.39

36

103-4566

SPACER,LOWER FRAME IDLER

$16.49

37

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

38

32128-20

Nut-Whizlock 5/16-18

$1.39

39

103-3186

SPACER-BRACKET, GUIDE

$23.09

40

3231-6

Bolt-Carriage 3/8-16 x 2

$3.23

41

109-0089-03

BRACKET, HYDRAULIC TANK

$32.99

42

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

43

109-8753

Spacer

$15.39

44

109-8752

BUSHING,PLASTIC

$26.39

45

112-9771

Washer-Teflon

$2.98

46

5-0838

Washer

$5.15

48

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

49

112-8358

HYD MOTOR ASM (CW)

$1,180.99

50

112-8357

HYD MOTOR ASM (CCW)

$1,248.99

50:1

3257-42

Key-Woodruff 5/16 x 1

$6.71

50:2

1-809036

Nut-Slotted 1-20

$38.49

50:3

126-7279

KIT, WHEEL MOTOR SEAL

$292.99
