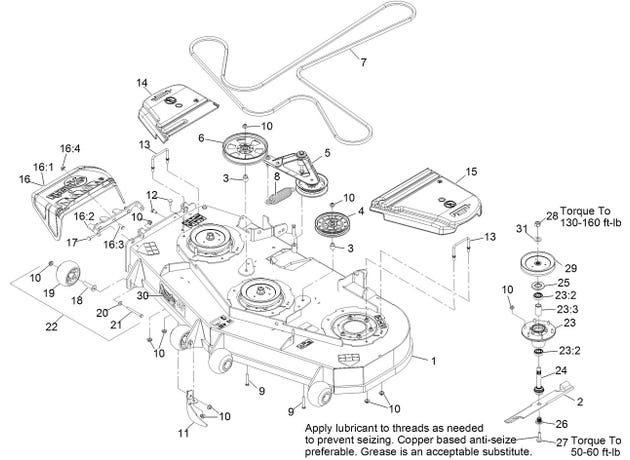

eXmark MN LZE742GKC60400 Deck Assembly

1

116-4232

DECK ASM,W/DECALS 60

$3,348.99

2

103-6388-S

SPK, BLADE LOW LIFT 20.5 (.94 HOLE)

$38.49

2

103-6403-S

SPK, BLADE NOTCHED 20.5 (.94 HOLE)

$32.99

2

103-6393-S

SPK, BLADE MULCH 20.5 (.94 HOLE)

$31.89

2

103-6383-S

SPK, BLADE SOLID 20.5 (.94 HOLE)

$35.19

2

116-5174

BLADE-EXTREME 2, 20.50"

product not available CALL FOR AVAILABILITY

$1.00

3

1-633456

BUSHING-IDLER

$5.39

4

126-7685

IDLER-PULLEY

$63.79

5

116-3755

DECK IDLER ASM

$234.99

6

116-9639

PULLEY-IDLER, FLAT

$88.99

7

109-8073

BELT,V-5V-198.75

$148.99

8

116-6317

SPRING-EXTENSION

$28.59

9

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

11

116-5614-01

DOGLEG - LZ60

$60.49

13

109-6982

WIREFORM-COVER

$12.09

14

116-0094

COVER-BELT, RH

$80.99

15

109-6938

COVER-BELT, LH

$89.99

16

109-7188

ASM,DISCHARGE CHUTE

$97.99

16:1

109-2738

CHUTE,DISCHARGE

$75.89

16:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

16:3

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

16:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

17

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

18

116-8131

AXLE, ROLLER

$13.19

19

103-8415

ROLLER-ANTI-SCALP

$24.19

20

98-5975

Washer-Spring Disc 3/8

$3.71

21

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

22

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

23

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

23:2

116-0720

BEARING-BALL

$23.09

23:3

116-3312

SPACER-BEARING

$9.59

24

116-3341

ASM-SPINDLE AND SEAL

$77.99

25

116-1286

GUARD,BEARING TOP .989

$5.99

26

103-3037

BUSHING,SPLINED

$23.09

27

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

28

116-7306

NUT-HEX

$3.11

29

116-0676

SHEAVE,BLADE DRIVE 7.25

$71.49

30

116-0025

DECAL,ULTRACUT 60 SERIES 4

$19.79

31

103-2802

Washer-Spring Disc 3/4

$5.75
