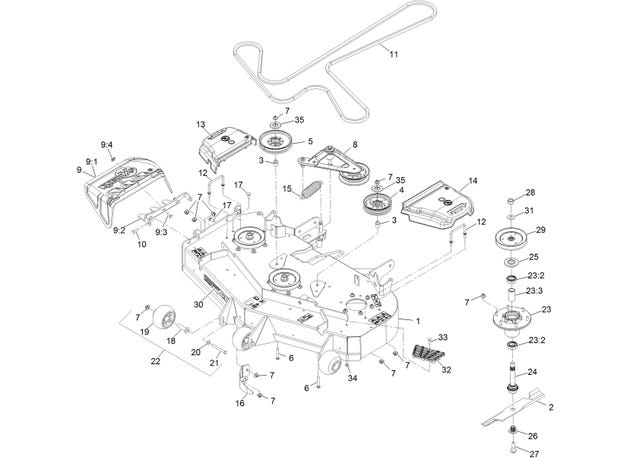

eXmark MN LZE651CKA484A2 Deck Assembly

1

109-9008

ASM,DECK W/DECALS 48

$3,482.99

2

116-5177-S

SPK,BLADE-EXTREME 2, 16.25"

$32.99

2

103-6401-S

SPK, BLADE NOTCHED 16.25 (.94 HOLE)

$31.89

2

103-6391-S

SPK, BLADE MULCH 16.25 (.94 HOLE)

$32.99

2

103-6386-S

SPK, BLADE LOW LIFT 16.25 (.94 HOLE)

$31.89

2

103-6381-S

SPK, BLADE SOLID 16.25 (.94 HOLE)

$35.19

3

1-633456

BUSHING-IDLER

$5.39

4

126-9187

PULLEY-IDLER, FLAT

$61.59

5

126-7685

IDLER-PULLEY

$63.79

6

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

8

116-3755

DECK IDLER ASM

$234.99

9

109-7188

ASM,DISCHARGE CHUTE

$97.99

9:1

109-2738

CHUTE,DISCHARGE

$75.89

9:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

9:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

10

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

11

109-8070-SL

BELT WITH SLEEVE

$137.99

12

109-6982

WIREFORM-COVER

$12.09

13

109-6935

COVER-BELT, RH

$39.59

14

109-6936

COVER-BELT, LH

$39.59

15

116-6317

SPRING-EXTENSION

$28.59

16

116-5995-01

BAFFLE-DOGLEG,LZS LZX VT48

$63.79

17

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

18

116-8131

AXLE, ROLLER

$13.19

19

103-8415

ROLLER-ANTI-SCALP

$24.19

20

98-5975

Washer-Spring Disc 3/8

$3.71

21

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

22

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

23

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

23:2

116-0720

BEARING-BALL

$23.09

23:3

116-3312

SPACER-BEARING

$9.59

24

116-3341

ASM-SPINDLE AND SEAL

$77.99

25

116-1286

GUARD,BEARING TOP .989

$5.99

26

103-3037

BUSHING,SPLINED

$23.09

27

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

28

116-7306

NUT-HEX

$3.11

29

116-0674

SHEAVE,BLADE DRIVE 5.90

$79.19

30

126-6587

DECAL, 484

$9.59

31

103-2802

Washer-Spring Disc 3/4

$5.75

32

126-4781-03

STEP-DECK

$26.39

33

3230-3

Bolt-Carriage 5/16-18 x 1 1/4

$1.68

34

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

35

126-8043

SHIELD-DUST

$2.98
