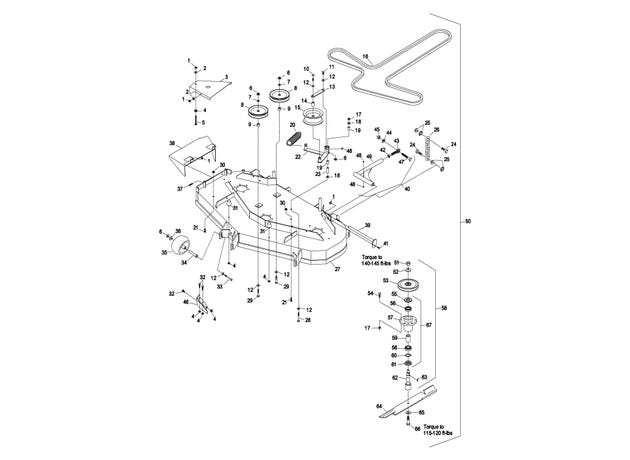

eXmark MN LHP4417KA Deck Group - 52"

1

3296-29

Nut-Nyloc 5/16-18

$2.72

2

3256-3

Washer-5/16 Std

$0.74

3

103-2970-01

Shield, Belt

$35.19

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

1-800017

Bolt, Tap 5/16-18 x 3 1/4

$7.55

6

3290-357

Nut-Whizlock 3/8-16

$1.11

7

3256-24

Washer-3/8 SAE

$0.83

8

1-613098

PULLEY-IDLER

$48.39

9

1-413113

BUSHING-IDLER

$6.35

10

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

11

323-6

Screw-HH 3/8-16 x 1

$2.98

12

98-5975

Washer-Spring Disc 3/8

$3.71

13

1-653189

PLATE

$12.09

14

1-653190

SPACER

$17.59

15

1-413099

PULLEY-IDLER

$31.90

16

1-653368

Belt, deck drive

$142.99

17

3296-39

Nut-Nyloc 3/8-16

$2.98

18

1-809107

WASHER-HARDENED

$5.75

19

1-513034

SLEEVE-BEARING

$8.15

20

103-3330

Spring-Extension

$11.66

21

321-1

SCREW-HH

$2.33

22

1-652192-01

Idler arm wldmt

product not available CALL FOR AVAILABILITY

$0.01

23

1-603384

BUSHING-PIVOT, IDLER

$14.29

24

1-800811

SCREW-CAP, HH

$12.09

25

32128-37

Nut-Whizlock 7/16-14

$4.67

26

1-633447

CHAIN-LIFT, DECK

$11.99

27

1-654478

Deck wldmt (1-652418-01) w/decals and discharge baffle

product not available CALL FOR AVAILABILITY

$0.01

28

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

29

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

30

32128-33

Nut-Whizlock 1/4-20

$0.97

31

1-543963

BUMPER-RUBBER

$24.19

32

322-2

Screw-HH 5/16-18 x 5/8

$2.98

33

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

34

1-603602

BUSHING,ROLLER

$24.19

35

1-603299

ROLLER-SCALP, ANTI

$23.09

36

1-373034

Washer

$3.83

37

322-5

Screw-HH 5/16-18 x 1

$0.74

38

1-652375-01

Chute wldmt, discharge

$169.99

39

1-632199-01

PIN-STRUT

$36.29

40

103-1081

STRUT ASM

$245.99

41

322-3

Screw-HH 5/16-18 x 3/4

$1.11

42

3219-6

Nut-Hex 5/8-18

$4.43

43

1-633029

Balljoint

$63.79

44

3253-8

Washer-Lock 5/8

$0.83

45

3217-11

Nut-Hex 5/8-11

$3.95

46

1-602913-01

Baffle, Discharge

$47.29

47

1-800344

Screw-HH 5/8-11 x 6

$16.49

48

302-19

Zerk-1/4-28 Str

$2.85

49

103-1072-01

STRUT

$59.51

50

1-654552

Deck complete service

product not available CALL FOR AVAILABILITY

$1.00

51

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

52

103-2802

Washer-Spring Disc 3/4

$5.75

53

1-653386

Sheave, w/hub 6.71" O.D

$86.99

54

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

55

103-1330

Guard-Bearing Top

$5.75

56

103-2477

BEARING-JACKSHAFT

$60.49

57

1-323532

HOUSING-SPINDLE

product not available CALL FOR AVAILABILITY

$0.01

58

103-3222

Cutter Housing Complete

product not available CALL FOR AVAILABILITY

$0.01

59

103-2534

Spacer-Bearing

$9.59

60

32120-8

RING-SNAP

$3.24

61

103-2535

Spacer-Guard Bottom

$13.19

62

103-2787

Spindle

$131.99

63

1-807268

KEY-RECTANGLE

$2.98

64

103-2528

Blade-Notched

$11.98

65

103-0865

Washer-Blade Bolt, Heavy

$6.35

66

103-0862

Screw-Cap

$6.35

67

103-2547

Cutter housing assembly

product not available CALL FOR AVAILABILITY

$0.01



1-654193

Idler arm wldmt w/bushings

product not available CALL FOR AVAILABILITY

$0.01



103-2508

BLADE-LIFT, LOW

product not available CALL FOR AVAILABILITY

$0.01



103-2518

BLADE-MULCH

product not available CALL FOR AVAILABILITY

$0.01



103-1578

Blade, Solid 18.00

product not available CALL FOR AVAILABILITY

$0.01



1-850337

Exmark red touch up spray paint

$31.89
