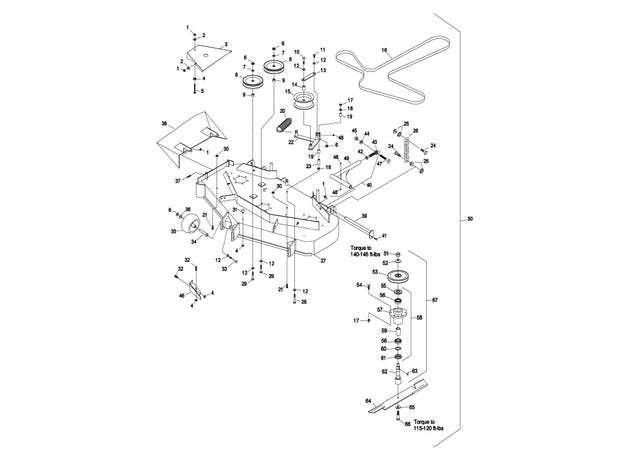

eXmark MN LHP5223KC Deck Group - 44" And 48"

1

3296-29

Nut-Nyloc 5/16-18

$2.72

2

3256-3

Washer-5/16 Std

$0.74

3

103-2970-01

Shield, Belt

$35.19

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

1-800017

Bolt, Tap 5/16-18 x 3 1/4

$7.55

6

3290-357

Nut-Whizlock 3/8-16

$1.11

7

3256-24

Washer-3/8 SAE

$0.83

8

1-613098

PULLEY-IDLER

$48.39

9

1-413113

BUSHING-IDLER

$6.35

10

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

11

323-6

Screw-HH 3/8-16 x 1

$2.98

12

98-5975

Washer-Spring Disc 3/8

$3.71

13

1-653189

PLATE

$12.09

14

1-653190

SPACER

$17.59

15

116-4666

IDLER-PULLEY, FLAT

$69.29

16

1-413308

Belt, deck drive

$139.99

17

3296-39

Nut-Nyloc 3/8-16

$2.98

18

1-809107

WASHER-HARDENED

$5.75

19

1-513034

SLEEVE-BEARING

$8.15

20

116-6317

SPRING-EXTENSION

$28.59

21

321-1

SCREW-HH

$2.33

22

103-5698

Kit, Idler Arm W/Bearings

$204.99

23

1-603384

BUSHING-PIVOT, IDLER

$14.29

24

1-800811

SCREW-CAP, HH

$12.09

25

32128-37

Nut-Whizlock 7/16-14

$4.67

26

1-633447

CHAIN-LIFT, DECK

$11.99

27

1-651312

Deck wldmt (1-652311-01) w/decals and discharge baffle (48")

$3,073.99

28

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

29

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

30

32128-33

Nut-Whizlock 1/4-20

$0.97

31

1-543963

BUMPER-RUBBER

$24.19

32

322-2

Screw-HH 5/16-18 x 5/8

$2.98

33

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

34

1-603602

BUSHING,ROLLER

$24.19

35

1-603299

ROLLER-SCALP, ANTI

$23.09

36

1-373034

Washer

$3.83

37

322-5

Screw-HH 5/16-18 x 1

$0.74

38

1-402106-01

Chute wldmt, discharge (44")(48")

$148.99

39

1-632199-01

PIN-STRUT

$36.29

40

103-1081

STRUT ASM

$245.99

41

322-3

Screw-HH 5/16-18 x 3/4

$1.11

42

3219-6

Nut-Hex 5/8-18

$4.43

43

1-633029

Balljoint

$63.79

44

3253-8

Washer-Lock 5/8

$0.83

45

3217-11

Nut-Hex 5/8-11

$3.95

46

116-2297-01

Baffle, Discharge

$30.79

47

1-800344

Screw-HH 5/8-11 x 6

$16.49

48

302-19

Zerk-1/4-28 Str

$2.85

49

109-1181

STRUT-DECK

$95.99

50

1-654550

Deck complete service (44")

product not available CALL FOR AVAILABILITY

$1.00

51

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

52

103-2802

Washer-Spring Disc 3/4

$5.75

53

1-653099

Sheave, w/hub 6" O.D. (44")

$73.69

54

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

55

103-1330

Guard-Bearing Top

$5.75

56

103-2477

BEARING-JACKSHAFT

$60.49

58

103-8280

Kit, Cutter Housing

$247.99

59

103-2534

Spacer-Bearing

$9.59

60

32120-8

RING-SNAP

$3.24

61

103-2535

Spacer-Guard Bottom

$13.19

62

103-2787

Spindle

$131.99

63

1-807268

KEY-RECTANGLE

$2.98

64

103-2529-S

SPK, BLADE NOTCHED 15.25

$38.49

65

103-0865

Washer-Blade Bolt, Heavy

$6.35

66

103-0862

Screw-Cap

$6.35

67

103-8317

Cutter Housing Complete (44")

$571.99



1-413093

Belt, deck drive

$133.99



1-654175

Deck wldmt (1-652124-01) w/decals and discharge baffle (44")

$2,598.99



1-654551

Deck complete service (48")

product not available CALL FOR AVAILABILITY

$1.00



1-413424

Sheave, w/hub 6 5/16" O.D.

$70.39



103-2509

Blade, Low Lift (44")

product not available CALL FOR AVAILABILITY

$0.01



103-2519-S

SPK, BLADE MULCH 15.25

$39.59



103-1579-S

SPK, BLADE SOLID 15.25

$31.89



103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99



103-6738-S

SPK, BLADE LOW LIFT 16.25

$32.99



103-6581-S

SPK, BLADE MULCH 16.25

$35.19



103-1577-S

SPK, BLADE SOLID 16.25

$38.49



103-8318

Cutter Housing Complete (48")

$540.99



1-850337

Exmark red touch up spray paint

$31.89
