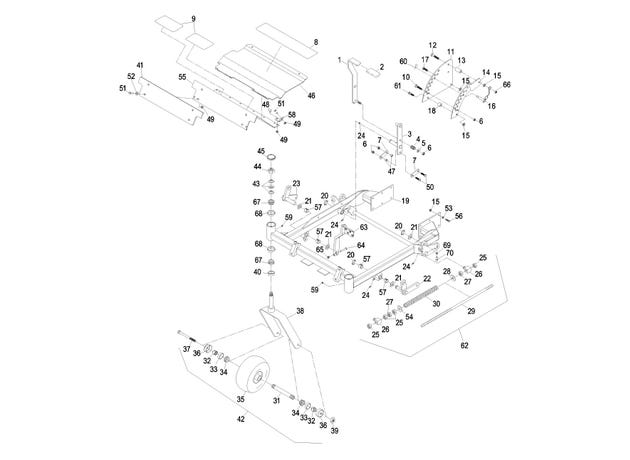

eXmark MN LHP4417KA Front Frame Group

1

103-2081

Asm, Lift Lever W/Grip

$54.99

2

1-633295

GRIP-LEVER, LIFT

$8.51

3

103-3718-03

Wld, Deck Lift Arm

$104.99

4

1-633325

SPRING-COMPRESSION

$5.75

5

3256-24

Washer-3/8 SAE

$0.83

7

1-633068

ARM-LIFT, DECK

$12.09

8

1-633553

PAD-ANTISKID

$13.19

9

106-6572

Pad, Anti Skid

$12.09

10

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

11

1-653230-01

PLATE-LIFT, DECK

$63.79

12

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

13

1-633082

Bushing

$12.09

14

1-652235-01

PLATE-LIFT, DECK

$71.12

15

3290-357

Nut-Whizlock 3/8-16

$1.11

16

1-633097

PIN-HITCH (W/LANYARD)

$24.19

17

323-6

Screw-HH 3/8-16 x 1

$2.98

18

1-413088

Spacer

$11.99

19

103-3831

Asm, front frame 44"

$2,193.99

20

32151-103

E-Ring

$3.47

21

3256-29

Washer-7/8 SAE

$3.11

22

1-652013-01

Shaft Wld, Deck Lift LH

$61.59

23

1-652014-01

Shaft Wld, Deck Lift RH

$68.19

24

302-19

Zerk-1/4-28 Str

$2.85

25

3217-11

Nut-Hex 5/8-11

$3.95

26

1-633441

SWIVEL-DECK MOUNT, REAR

$27.49

27

3218-6

Nut-Jam 5/8-11

$7.31

28

1-805517

Washer-5/8 Type B Wide

$6.71

29

1-653011

ROD-LIFT, DECK

$21.99

30

1-653009

SPRING-COMPRESSION

$17.59

31

103-3155

AXLE-CASTER

product not available CALL FOR AVAILABILITY

$0.01

32

103-3051

Spacer-Nut

$9.59

33

103-0063

Seal-Double Lip

$9.95

34

1-633585

Bearing-Cone Tapered Roller

$21.99

35

1-633002

TIRE

$91.99

36

103-2768

Guard-Seal

$3.95

37

325-36

Screw-HH 1/2-13 x 7 1/2

$12.09

38

1-632511-01

CASTER

$81.75

39

3296-45

NUT-HEX

$4.55

40

1-543511

Seal-Grease

$12.09

41

103-4432-01

Plate, Weight (52")

product not available CALL FOR AVAILABILITY

$0.01

42

103-5189

ASM, WHEEL AND TIRE W/ AXLE

$231.99

43

1-633508

Washer-Spring Disc

$3.83

44

3296-51

Nut-Nyloc 3/4-10

$7.19

45

103-4882

CAP-GREASE

$8.51

46

103-5624

Asm, Floorpan Liftout (103-5315-01) W/Pad and Decals

product not available CALL FOR AVAILABILITY

$0.01

47

103-1918

Bushing

$8.87

48

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

49

32128-20

Nut-Whizlock 5/16-18

$1.39

50

323-29

Screw-HH 3/8-16 x 1 3/8

$0.74

51

322-3

Screw-HH 5/16-18 x 3/4

$1.11

52

3256-3

Washer-5/16 Std

$0.74

53

98-5975

Washer-Spring Disc 3/8

$3.71

54

3256-27

Washer-5/8 SAE

$3.11

55

103-5623

Asm, Flrpan Front (103-5314-01) W/Decal

product not available CALL FOR AVAILABILITY

$0.01

56

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

57

103-1982

Bushing, Spring

product not available CALL FOR AVAILABILITY

$0.01

58

99-3870-01

BRACKET-FLOORPAN

product not available CALL FOR AVAILABILITY

$0.01

59

1-811010

Plug

$5.75

60

1-806005

Hairpin-Cotter

$2.98

61

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

62

103-1987

Front Spring ASM

product not available CALL FOR AVAILABILITY

$0.01

63

103-1673-01

Wld, Foot Lift Lever

product not available CALL FOR AVAILABILITY

$0.01

64

322-10

SCREW-HH

$1.11

65

1-803013

Nut-Hex 5/16-18 Lock

$1.42

66

3296-39

Nut-Nyloc 3/8-16

$2.98

67

1-543509

Cone-Bearing Tapered Roller

$14.29

68

1-543508

Cup-Bearing Tapered Roller

$8.51

69

3218-2

Nut-Jam 5/16-18

$0.59

70

3274-18

Screw-SH 5/16-18 x 1 1/4

$9.59



103-3833

Asm, front frame 52"

$2,120.99



103-3832

Asm, front frame 48"

$2,083.99



103-1674-01

Shaft Wld, Deck Lift RH

product not available CALL FOR AVAILABILITY

$0.01



103-3785

Asm, Caster Wheel

$122.11



322-5

Screw-HH 5/16-18 x 1

$0.74



1-850337

Exmark red touch up spray paint

$31.89



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



103-1675

Deck Lift Assist Kit

product not available CALL FOR AVAILABILITY

$1.00



103-2078-03

HANDLE-LIFT

$62.69



103-5315-01

Asm, Floorpan Liftout W/Pad and Decals

product not available CALL FOR AVAILABILITY

$0.01



103-5314-01

Asm, Flrpan Front W/Decal

product not available CALL FOR AVAILABILITY

$0.01
