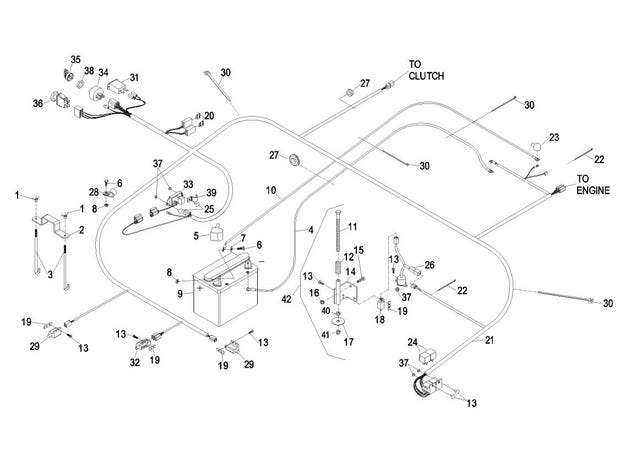

eXmark MN LHP4419KA Electrical Group - Kohler

1

1-543792

Wingnut-Nyloc 1/4-20

$7.07

2

1-633652-03

STRAP-HOLDDOWN

$20.89

3

1-633651

BOLT-HOLDDOWN

$8.75

4

103-0705

CABLE-GROUND, NEGATIVE

$19.79

5

109-2407

INSULATOR-BATTERY

$5.75

6

321-4

Screw-HH 1/4-20 x 3/4

$1.39

7

3256-2

Washer-1/4 Std

$0.59

8

32128-33

Nut-Whizlock 1/4-20

$0.97

9

103-0293

Battery, 12 volt

product not available CALL FOR AVAILABILITY

$0.01

10

109-7630

POSITIVE BATTERY CABLE ASM

$43.99

11

1-800282

Screw-HH 5/16-18 x 7

$5.75

12

1-523415

Spring

$34.09

13

3290-500

Screw-PPH #10-24 x 5/8

$1.55

14

1-652072-03

BRACKET-SWITCH, SEAT

$39.59

15

322-3

Screw-HH 5/16-18 x 3/4

$1.11

16

32128-20

Nut-Whizlock 5/16-18

$1.39

17

1-653036

Washer

$5.75

18

1-513152

Switch-N.C.

$14.29

19

1-633181

Plate-Tapped

$7.07

20

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

21

103-9259

Harness, Wiring

$377.99

22

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

23

1-543393

Insulator-Solenoid

$5.75

24

1-643275

Relay-12VDC 40 Amp

$24.19

25

1-803075

Screw-Truss Head #10-24 X 3/4

$1.55

26

109-4577

KIT,TILT SWITCH ELIMINATION

$5.75

27

1-543286

GROMMET

$13.19

28

1-633396

Clip-Loom 5/8

$5.75

29

1-513051

Switch-N.O.

$19.79

30

3290-378

Tie-Cable

$1.11

31

120-2244

HOURMETER

$71.49

32

1-633111

Switch

$21.99

33

103-5218

MODULE-DELAY, SEAT

$46.19

34

109-4736

Asm, Switch W/Nut

$42.89

35

103-2106

Key-Exmark Logo

$5.75

36

103-5221

Switch-PTO

$59.39

37

3296-2

Nut-Nyloc #10-24

$2.46

38

103-0498

Nut-Ignition

$3.59

39

103-1193

Clip-Loom Half

$2.85

40

3217-6

Nut-Hex 5/16-18

$1.55

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

103-5685

Asm, Seat Switch Actuator

$102.99



1-603511

Key-Ignition

$2.72
