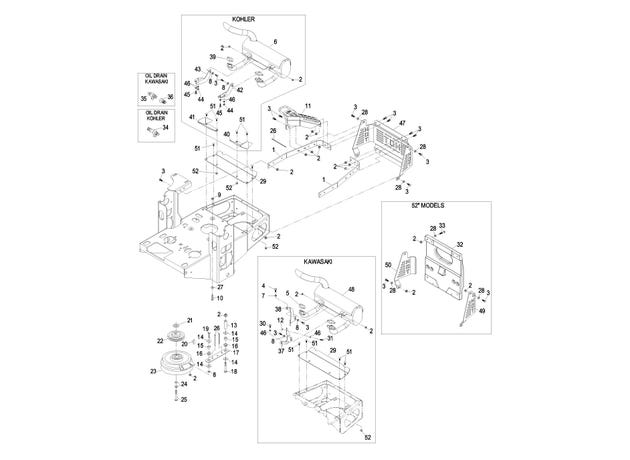

eXmark MN LHP4823KA Engine Group

1

103-3078-03

STRAP-GUARD, RH

$28.59

2

32128-20

Nut-Whizlock 5/16-18

$1.39

3

322-3

Screw-HH 5/16-18 x 3/4

$1.11

4

33114-020

SCREW-HH

$0.83

5

1-653313

GASKET-EXHAUST

$5.03

6

103-3426

KIT,MUFFLER (18-23 KOH)

$412.99

7

1-805005

Washer-Lock 5/16 Heavy

$1.55

8

3256-3

Washer-5/16 Std

$0.74

9

3296-29

Nut-Nyloc 5/16-18

$2.72

10

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

11

103-3218-03

GUARD-TAILPIPE

$69.29

12

103-3096

Spacer

$8.03

13

103-2614

Spacer

product not available CALL FOR AVAILABILITY

$0.01

14

1-613235

WASHER

$1.94

15

1-633545

SPACER

$3.11

16

1-633630

Grommet

$6.23

17

1-633543-03

STRAP-CLUTCH, BRAKE

$15.39

18

322-22

SCREW-HH

$5.15

19

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

20

1-807259

KEY

$2.46

21

103-2308

Spacer-Crankshaft

$9.95

22

1-653035

PULLEY

$70.39

23

109-9276

CLUTCH KIT

$549.99

24

1-603610

Washer-Spring Disc 7/16

$5.75

25

3212-12

Screw-HH 7/16-20 x 3

$3.47

26

3290-378

Tie-Cable

$1.11

27

1-303334

Washer-Spring Disc 5/16

$2.98

28

3256-23

Washer-5/16 SAE

$2.59

29

103-2740-03

Deflector-Short

$25.29

30

33113-016

SCREW-HH

$0.59

31

33113-025

Screw-HH M6-1 x 25mm

$2.85

32

103-3107-03

WEIGHT,60No. - NOTHCED

product not available CALL FOR AVAILABILITY

$1.00

33

322-7

SCREW-HH

$1.25

34

103-1963

VALVE-DRAIN, OIL

$79.19

35

103-1965

Valve-Drain, Oil

$57.19

36

103-1966

ADAPTER-STR

$18.69

37

103-2993-03

Bracket-Muffler, LH

$58.29

38

103-2994-03

Bracket-Muffler, RH

$31.89

39

110-6697

GASKET-EXHAUST

$7.43

40

103-3094-03

DEFLECTOR-AIR, LH,KC

$18.69

41

103-3095-03

DEFLECTOR-AIR, RH,KC

$18.69

42

103-2987-03

BRACKET-MUFFLER, LH

$28.59

43

103-2988-03

BRACKET-MUFFLER, RH

$27.49

44

33013-00

Nut-Whizlock M8-1.25

$2.85

45

33113-020

Screw-HH M6-1 x 12mm

$0.59

46

1-805004

Washer-Lock 1/4 Heavy

$1.55

47

103-3219-03

GUARD-REAR

$166.99

48

103-3427

MUFFLER KIT

$543.99

49

103-3287-03

GUARD-MUFFLER, LH

$62.69

50

103-3288-03

GUARD-MUFFLER, RH

$62.69

51

3229-10

Bolt-Carriage 1/4-20 x 1/2

$1.55

52

32128-33

Nut-Whizlock 1/4-20

$0.97



3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07



103-3012

Kit, Brake Pole Module

$128.99



103-3913

PULLEY

$68.19



1-653290

GASKET-EXHAUST

$19.79



103-4477-03

BRACKET-MUFFLER, LH

$20.89



103-4478-03

BRACKET-MUFFLER, RH

$20.89



2508301-S

Air Filter Element - Outer

product not available CALL FOR AVAILABILITY

$1.00



2508304-S

Air Filter Element - Inner

product not available CALL FOR AVAILABILITY

$1.00



11010-7004

Filter-Assy-Air

product not available CALL FOR AVAILABILITY

$1.00



11013-7028

19 HP Air Filter Element

product not available CALL FOR AVAILABILITY

$1.00



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



103-4483

MUFFLER KIT

$439.99
