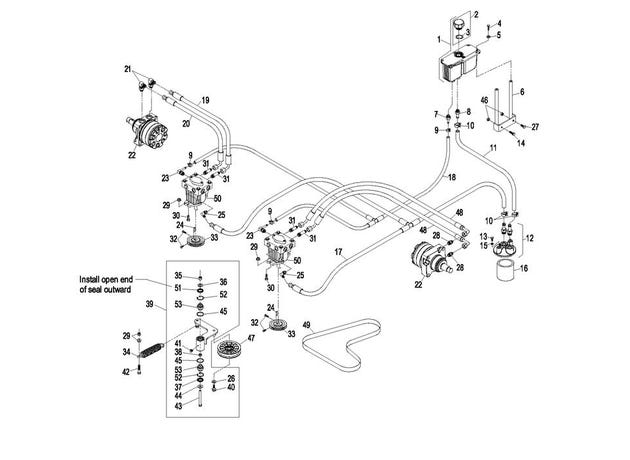

eXmark MN LHP27KC565 Hydraulic Group

1

103-1947

HYD Reservoir ASM

$221.99

2

103-7615

Asm, Cap W/Gasket

$30.79

3

142-2792

O-RING

$1.68

4

321-6

Screw-HH 1/4-20 x 1

$0.74

5

3256-22

Washer-1/4 SAE

$0.59

6

103-3071-03

STAND-RESERVOIR

$53.89

7

103-1801

Adapter-Straight

$31.89

8

103-1912

Adapter-Straight

$23.09

9

103-1716

Clamp-Hose 17/32

$1.55

10

103-1988

Clamp-Hose 11/16

$1.55

11

103-3077

HYD HOSE ASM

$12.09

12

103-2889

Filter Head ASM

$99.99

13

321-3

Screw-HH 1/4-20 x 5/8

$1.55

14

322-5

Screw-HH 5/16-18 x 1

$0.74

15

1-805004

Washer-Lock 1/4 Heavy

$1.55

16

1-523541

ELEMENT-FILTER, WINTER

$50.59

16

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

17

103-2930

HYD HOSE ASM

$75.99

18

103-2357

HYD HOSE ASM

$49.49

19

1-653437

Hose, RH Front

$84.99

19

1-653187

HOSE-REAR, RH

$80.29

20

109-2524

Hose, RH Front

$81.99

20

109-2525

Hose, RH Front

$88.99

21

1-633605

FITTING-HYD, 90 DEG

$50.59

21

1-603919

O-Ring-SAE #10

$3.83

21

1-603992

O-Ring-37 Flare #8

$2.98

22

1-523328

MOTOR-WHEEL

$1,207.99

23

103-1799

ELBOW-90 DEG

$30.79

24

1-807272

Key-5mm x 5mm x 25mm

$6.35

25

103-1802

FITTING-ELBOW, 90 DEG

$24.19

26

3256-24

Washer-3/8 SAE

$0.83

27

322-3

Screw-HH 5/16-18 x 3/4

$1.11

28

1-603991

Adapter-Straight

$21.99

29

3290-357

Nut-Whizlock 3/8-16

$1.11

30

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

31

103-1940

Adapter-Straight

$23.09

32

1-803050

Setscrew-5/16-18 x 3/4

$2.98

33

1-653156

PULLEY

$70.39

34

116-0032

SPRING-EXTENSION

$34.09

35

3296-39

Nut-Nyloc 3/8-16

$2.98

36

98-5975

Washer-Spring Disc 3/8

$3.71

37

103-3505

SEAL-LIP, DOUBLE

$5.75

38

103-5677

Spacer

$2.98

39

109-4311

Kit, Idler Arm W/Bearings

$174.99

40

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

41

302-40

Zerk-90° 1/4-28

$3.59

42

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

43

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

44

3256-4

Washer-3/8 Std

$1.94

45

106-7159

O-Ring

$1.25

46

32128-20

Nut-Whizlock 5/16-18

$1.39

47

109-4077

PULLEY-IDLER, FLAT

$21.99

48

109-4608

Hose, LH 46" & 50"

$110.99

48

109-4609

Hose, LH 56"

$110.99

49

103-4761-SL

BELT WITH SLEEVE

$32.99

50

103-1942

PUMP-HYD

$995.99

51

103-3506

Seal-Single Lip

$5.75

52

32120-10

Ring-Retaining

$1.68

53

103-3504

Bearing-Spherical

$24.19



237-42

O-RING

$3.24



103-6996

Kit, Output Shaft & Seals

$689.99



103-6995

OUTPUT SHAFT and SEALS KIT

$586.99



103-6994

SEAL KIT

$289.99



1-603920

O-Ring-SAE #8

$3.95



94-6922

BEARING-THRUST

$63.79



103-2666

CYLINDER BLOCK KIT

$459.99



103-2664

INPUT SHAFT KIT

$211.99



105-6184

SEAL OVERHAUL KIT

$81.39



103-2741

SHOCK VALVE KIT

$35.40
