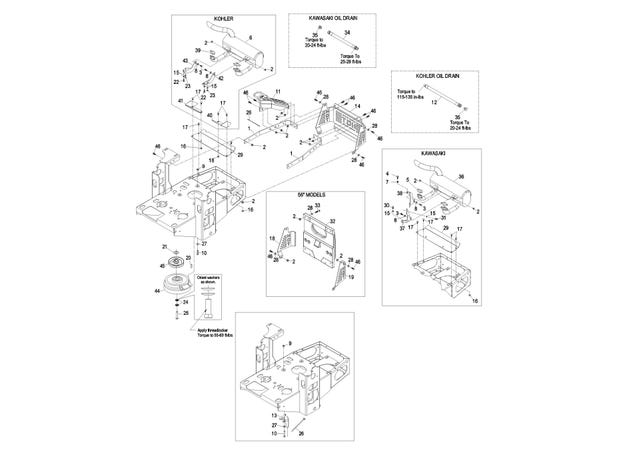

eXmark MN LHP23KA505 Engine Group

1

103-3078-03

STRAP-GUARD, RH

$28.59

2

32128-20

Nut-Whizlock 5/16-18

$1.39

3

322-3

Screw-HH 5/16-18 x 3/4

$1.11

4

33114-025

Screw-HH M8-1.25 x 25mm

$1.94

5

1-653313

GASKET-EXHAUST

$5.03

6

103-3426

KIT,MUFFLER (18-23 KOH)

$412.99

7

1-805005

Washer-Lock 5/16 Heavy

$1.55

8

3256-3

Washer-5/16 Std

$0.74

9

3296-29

Nut-Nyloc 5/16-18

$2.72

10

322-10

SCREW-HH

$1.11

11

103-3218-03

GUARD-TAILPIPE

$69.29

12

109-0876

OIL DRAIN HOSE ASM

product not available CALL FOR AVAILABILITY

$0.01

13

109-8385-03

Anchor, Clutch

$73.69

14

103-3219-03

GUARD-REAR

$166.99

15

1-805004

Washer-Lock 1/4 Heavy

$1.55

16

32128-33

Nut-Whizlock 1/4-20

$0.97

17

3229-10

Bolt-Carriage 1/4-20 x 1/2

$1.55

18

103-3288-03

GUARD-MUFFLER, RH

$62.69

19

103-3287-03

GUARD-MUFFLER, LH

$62.69

20

1-807259

KEY

$2.46

21

103-9891

Spacer

$9.59

22

33113-020

Screw-HH M6-1 x 12mm

$0.59

23

33013-00

Nut-Whizlock M8-1.25

$2.85

24

1-603610

Washer-Spring Disc 7/16

$5.75

25

3212-12

Screw-HH 7/16-20 x 3

$3.47

26

1-303335

Tie-Cable 7 15/16 (Large)

product not available CALL FOR AVAILABILITY

$0.01

27

1-303334

Washer-Spring Disc 5/16

$2.98

28

3256-23

Washer-5/16 SAE

$2.59

29

103-2740-03

Deflector-Short

$25.29

30

33113-016

SCREW-HH

$0.59

31

33113-025

Screw-HH M6-1 x 25mm

$2.85

32

107-8421-03

WEIGHT-NOTCHED, 60 LB

product not available CALL FOR AVAILABILITY

$0.01

33

322-7

SCREW-HH

$1.25

34

109-4490

OIL DRAIN HOSE ASM

product not available CALL FOR AVAILABILITY

$0.01

35

109-1012

Plug

$8.51

36

103-3427

MUFFLER KIT

$543.99

37

103-2993-03

Bracket-Muffler, LH

$58.29

38

103-2994-03

Bracket-Muffler, RH

$31.89

39

1-653291

GASKET-EXHAUST

product not available CALL FOR AVAILABILITY

$0.01

40

103-3094-03

DEFLECTOR-AIR, LH,KC

$18.69

41

103-3095-03

DEFLECTOR-AIR, RH,KC

$18.69

42

103-2987-03

BRACKET-MUFFLER, LH

$28.59

43

103-2988-03

BRACKET-MUFFLER, RH

$27.49

44

109-9276

CLUTCH KIT

$549.99

45

103-3913

PULLEY

$68.19

46

322-5

Screw-HH 5/16-18 x 1

$0.74



103-2308

Spacer-Crankshaft

$9.95



109-7070-03

ANCHOR-CLUTCH

$50.59



1-653290

GASKET-EXHAUST

$19.79



3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07



109-9275

Clutch, W/Pigtail

$518.99



103-4483

MUFFLER KIT

$439.99



109-3476-03

BRACKET-MUFFLER, LH

$23.09



109-3477-03

BRACKET-MUFFLER, RH

$23.09



103-3012

Kit, Brake Pole Module

$128.99



103-9772

Sheave, Pump Drive

$67.09
