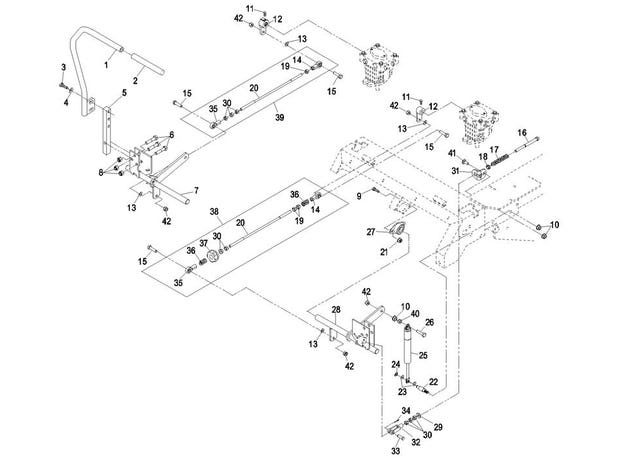

eXmark MN LHP23KA505 Motion Control Group

1

103-3458

ASM.RH LEVER/GRIP

$81.99

2

103-3456

GRIP,CONTROL LEVER

$15.39

3

323-6

Screw-HH 3/8-16 x 1

$2.98

4

98-5975

Washer-Spring Disc 3/8

$3.71

5

103-0407

ARM-SHAFT, CONTROL

$31.89

6

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

7

103-4773

CONTROL-MOTION, RH

product not available CALL FOR AVAILABILITY

$0.01

8

3296-39

Nut-Nyloc 3/8-16

$2.98

9

323-4

Screw-HH 3/8-16 x 3/4

$4.31

10

32128-20

Nut-Whizlock 5/16-18

$1.39

11

1-803022

Setscrew-5/16-18 x 5/8

$2.98

12

103-3717

ARM-CONTROL

$17.59

13

3256-3

Washer-5/16 Std

$0.74

14

1-633152

Balljoint

$20.89

15

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

16

1-603737

Bolt-Neutral Return

$9.59

17

1-603807

Spring

$3.83

18

109-3769

BUSHING-NYLON, FLANGED

$1.42

19

1-804524

Nut-Hex 5/16-24 (LH)

$2.98

20

103-3066

Link-Rod, Tracking

product not available CALL FOR AVAILABILITY

$0.01

21

3290-357

Nut-Whizlock 3/8-16

$1.11

22

103-4101

PIN-DAMPER

$21.99

23

3256-23

Washer-5/16 SAE

$2.59

24

32120-35

E-Ring

$4.55

25

109-2339

DAMPER-CONTROL, MOTION

$78.09

26

1-403180

Screw-HH 5/16-18 x 1 1/4 Sp

$2.98

27

1-633102

Bearing-Flanged

$18.69

28

103-4774

CONTROL-MOTION, LH

$125.99

29

3256-2

Washer-1/4 Std

$0.59

30

3219-2

Nut-Hex 5/16-24

$1.11

31

109-3908

TAB-ADJUSTMENT

$7.07

32

1-303105

Yoke-Adjustable

$13.19

33

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

34

3272-5

Pin-Cotter 3/32 x 1/2

$1.81

35

1-543017

Balljoint

$20.89

36

1-323245

Spring-Compression

$7.07

37

103-3060

KNOB-TRACKING

$7.55

38

103-4326

TRACKING ROD ASM

$76.99

39

103-4327

TRACKING ASM

$67.09

40

3217-6

Nut-Hex 5/16-18

$1.55

41

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

42

3296-29

Nut-Nyloc 5/16-18

$2.72



103-3457

ASM,LH LEVER/GRIP

$81.99
