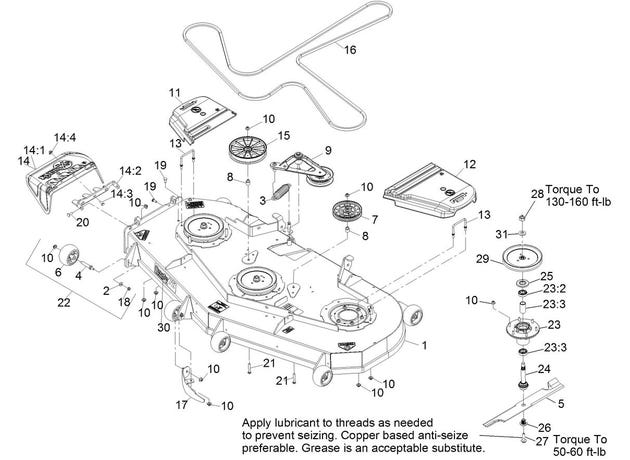

eXmark MN LZS740PKC724 Deck Assembly

1

116-1665

ASM,DECK W/DECALS 724

$3,497.99

2

98-5975

Washer-Spring Disc 3/8

$3.71

3

116-6317

SPRING-EXTENSION

$28.59

4

126-2928

KIT, ANTI-SCALP ROLLER AXLE

$27.49

5

116-5171-S

SPK,BLADE-EXTREME 2, 24.50"

$45.09

5

103-6404-S

SPK, BLADE NOTCHED 24.5 (.94 HOLE)

$45.09

5

103-6394-S

SPK, BLADE MULCH 24.5 (.94 HOLE)

$39.59

5

103-6389-S

SPK, BLADE LOW LIFT 24.5 (.94 HOLE)

$39.59

5

103-6384-S

SPK, BLADE SOLID 24.5 (.94 HOLE)

$45.09

6

1-603299

ROLLER-SCALP, ANTI

$23.09

7

126-7685

IDLER-PULLEY

$63.79

8

1-633456

BUSHING-IDLER

$5.39

9

116-3755

DECK IDLER ASM

$234.99

11

116-0094

COVER-BELT, RH

$80.99

12

109-6938

COVER-BELT, LH

$89.99

13

109-6982

WIREFORM-COVER

$12.09

14

109-7188

ASM,DISCHARGE CHUTE

$97.99

14:1

109-2738

CHUTE,DISCHARGE

$75.89

14:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

14:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

15

109-0996

PULLEY,IDLER 8"FLAT

$72.59

16

135-5777-SL

BELT-V WITH SLEEVE

$153.99

17

116-5834-01

BAFFLE-DOGLEG, LZ72

$78.09

18

3290-357

Nut-Whizlock 3/8-16

$1.11

19

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

20

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

21

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

22

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

23

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

23:2

116-0720

BEARING-BALL

$23.09

23:3

116-3312

SPACER-BEARING

$9.59

24

116-3341

ASM-SPINDLE AND SEAL

$77.99

25

116-1286

GUARD,BEARING TOP .989

$5.99

26

103-3037

BUSHING,SPLINED

$23.09

27

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

28

116-7306

NUT-HEX

$3.11

29

116-1377

SHEAVE,BLADE DRIVE 8.74

$117.99

30

116-0944

DECAL,ULTRACUT 72 SERIES 4

$23.09

31

103-2802

Washer-Spring Disc 3/4

$5.75
