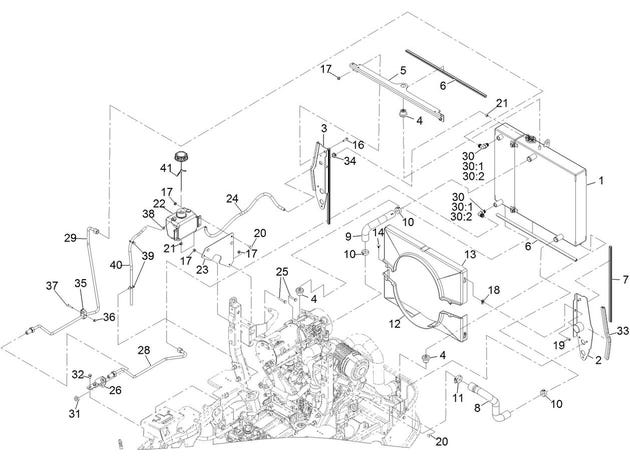

Cooling Assembly

#
Part #
Item
Price
Qty
Add
1
121-3330
COOLING ASM
$1,594.99
2
126-9026-03
SUPPORT-RADIATOR, LH
$50.59
3
126-9028-03
SUPPORT-RADIATOR, RH
$34.09
4
119-1422
MOUNT-ISOLATOR
$18.69
5
120-0068-03
BRACKET-COOLING, TOP
$49.49
6
119-1427
SEAL-BULB
$15.39
7
119-1426
SEAL-BULB
$13.19
8
121-3322
HOSE-RADIATOR, LOWER
$82.49
9
121-3321
HOSE-RADIATOR, UPPER
$82.49
10
2412-34
CLAMP-HOSE
$2.20
11
2412-130
CLAMP-HOSE
$4.55
12
121-3311
SHROUD-BOTTOM
$122.99
13
121-3312
SHROUD-TOP
$122.99
14
117-2382
PLUG-PLASTIC
$0.83
16
3234-29
Screw-HH FLG 5/16-18 x 1
$3.11
17
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
18
107069
Nut-Retainer-Panel 1/4-20
$2.85
19
32105-15
Screw-Machine 1/4-20 x 3/4
$2.85
20
3230-23
Bolt-Carriage 5/16-18 x 3/4 short neck
$1.25
21
92-2379
CLAMP-HOSE
$0.97
22
135-4692
TANK-OVERFLOW, W/CAP
$73.69
23
126-9178-03
BRACKET-BOTTLE
$20.89
24
126-7648
HOSE
$18.69
25
3230-6
Bolt-Carriage 3/16-18 x 2
$1.39
26
126-6781-03
BRACKET-BULKHEAD
$13.19
28
126-8691
HYDRAULIC TUBE ASM
$65.99
29
126-8690
HYDRAULIC TUBE ASM
$71.49
30
340-98
FITTING-ELBOW, 90 DEG
$30.79
30:1
237-79
O-RING
$5.75
30:2
237-30
O-RING
$2.85
31
340-127
NUT-BULKHEAD
$7.55
32
32144-70
Screw-HWH 5/16-18 x 3/4 TF
$2.85
33
126-6847
SEAL-BULB
$12.09
34
237-124
GROMMET
$2.98
35
135-0641
CLAMP-TWIN
$6.71
36
104-7201
Nut-Nyloc 1/4-20 Flg
$1.55
37
321-13
Screw-HH 1/4-20 x 1 3/8
$4.91
38
2412-98
CLAMP-HOSE
$1.68
39
32180-030
CLIP-TIE
$4.79
40
110-4103
HOSE-FUEL
$19.79
41
135-4693
CAP-W/TETHER
$21.99
