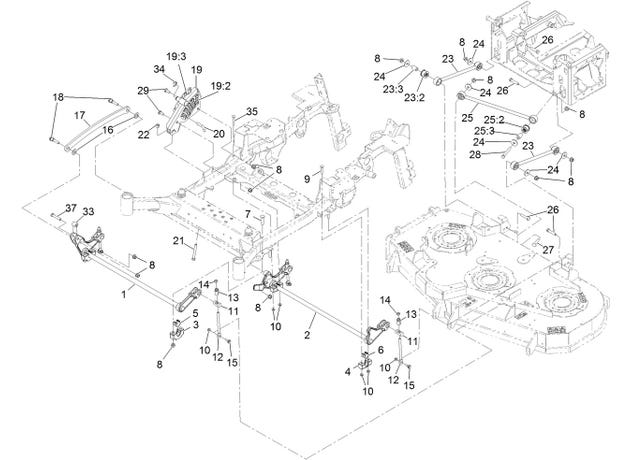

eXmark MN LZS80TDYM604W0 Deck Lift Assembly

1

135-1216-03

LIFT-DECK, FRONT

$363.99

2

116-2645-03

LIFT-DECK, REAR

$363.99

3

109-9409

SUPPORT-BEARING, CROSS SHAFT (FRONT)

$15.39

4

127-0553

SUPPORT-BEARING, CROSS SHAFT (REAR)

$15.39

5

109-9410

BEARING-CROSS SHAFT, FRONT

$5.75

6

109-7173

BEARING-CROSS SHAFT, REAR

$5.75

7

116-1700

Bolt-Carriage 1/2-13 x 2 1/2 spl neck

$5.75

8

99-5107

Nut-Lock 1/2-13

$2.20

9

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

10

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

11

109-8353

TRUNNION

$15.39

12

109-8007

LINK-ADJUSTER, DECK LIFT

$16.49

13

109-7840

ADJUSTER-LIFT, DECK

$8.51

14

3218-5

Nut-Jam 1/2-13

$1.25

15

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

16

3256-28

Washer-3/4 SAE

$3.95

17

116-0797-03

LINK-LIFT, DECK

$126.99

18

116-2022

Screw-Hex Flange 1/2-13 x 1.90

$9.95

19

126-7866

HOC ASM

$288.99

19:2

126-9275

DECAL-HOC

$14.29

19:3

135-1432

DECAL-HOC, OUTER

$14.29

20

116-5584

PIN-HOC

$5.63

21

116-0559

Bolt-HH 1/2-13 x 4 tap

$7.07

22

3296-23

Nut-Nyloc 1/2-13

$1.25

23

109-7952

DECK STRUT ASM

$134.99

24

86-1990

Washer

$4.43

25

109-5013

PANHARD ROD ASM

$131.99

25:2

109-5009

BUSHING-SUSPENSION, RUBBER

$5.75

25:3

109-5010

SPACER

$13.19

26

325-10

Screw-HH 1/2-13 x 2 1/2

$6.11

27

3233-34

Bolt-Carriage 1/2-13 x 2 1/2

$10.79

28

325-17

Screw-HH 1/2-13 x 4

$6.83

29

3233-26

SCREW-CARR,SHORTNECK

$2.07

33

135-1215

SPACER-PIVOT

$14.29

34

32151-91

RING-RETAINING

$2.85

35

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

37

325-11

Screw-HH 1/2-13 x 2 3/4

$3.47
