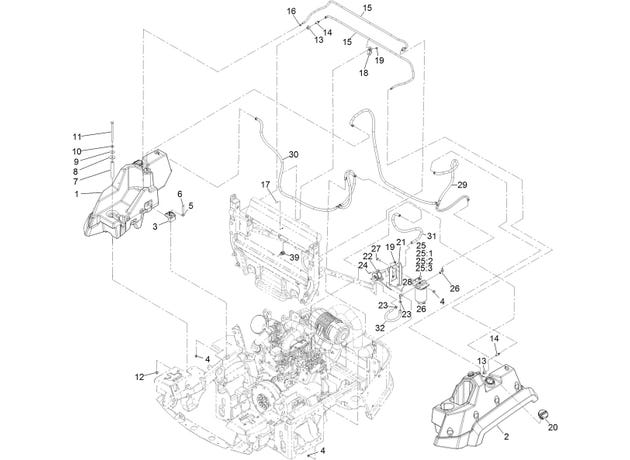

eXmark MN LZS80TDYM724W0 Fuel Assembly

1

142-8638

RH FUEL TANK ASM

$355.99

2

126-8652

LH FUEL TANK ASM

$328.99

3

107-4543

CLAMP

$11.99

4

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

5

3256-3

Washer-5/16 Std

$0.74

6

322-21

SCREW-HH

$5.75

7

126-8335

TUBE-SPACER

$16.49

8

95-1905

WASHER-RUBBER

$2.98

9

105-6814

WASHER-PLAIN

$1.55

10

3256-24

Washer-3/8 SAE

$0.83

11

323-22

SCREW-HH

$16.49

12

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

13

46-6560

BUSHING

$6.47

14

116-4630

FITTING-ORIFICE, STRAIGHT

$5.75

15

117-6395

HOSE-FUEL

$19.79

16

2412-80

CLAMP-HOSE

$5.75

17

3229-11

Bolt-Carriage 1/4-20 x 5/8

$1.39

18

92-5753

CLAMP-HOSE

$6.23

19

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

20

135-2715

CAP-FUEL, DIESEL

$23.09

21

135-0166-03

BRACKET-FILTER AND PUMP, FUEL

$30.79

22

121-5613

PUMP-FUEL, ELECTRIC

$259.99

23

92-2379

CLAMP-HOSE

$0.97

24

32105-15

Screw-Machine 1/4-20 x 3/4

$2.98

25

110-9044

SEPARATOR-FILTER

$89.99

25

116-0290

FUEL FILTER ASM

$148.99

25:2

116-0289

FILTER-FUEL

$56.09

25:3

116-1559

DECAL-FILTER

$7.07

26

353-781

FITTING-HYD, 90

$27.49

27

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

28

120-9738

SCREW-HH

$1.81

29

135-0510

LINE-FUEL, SUCTION

$75.89

30

135-0511

LINE-FUEL, RETURN

$71.49

31

109-0308

HOSE-FUEL

$12.09

32

110-4105

HOSE-FUEL

$13.19

39

32180-030

CLIP-TIE

$5.03
