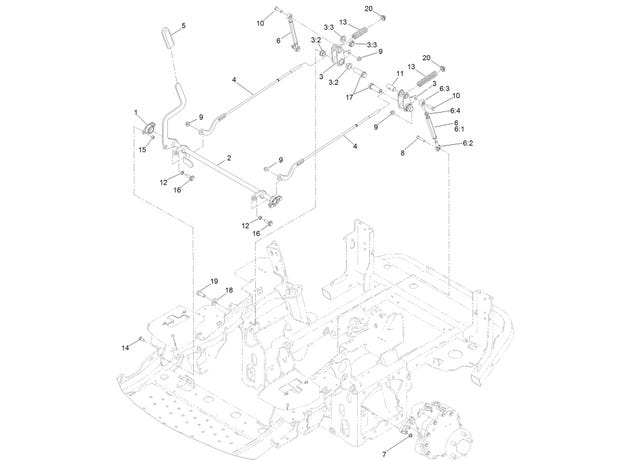

Parking Brake Assembly

1

1-633102

Bearing-Flanged

$17.59

2

126-2019

SHAFT-BRAKE

$128.99

3

126-3010

BRAKE BELLCRANK ASM

$79.19

3:2

109-8054

Bushing-Flanged

$5.39

3:3

135-2840

BUSHING-FLANGE

$6.71

4

126-3193

LINK-BRAKE, UPPER

$56.09

5

1-633268

GRIP-LEVER

$14.29

6

126-9171

TURNBUCKLE ASM

$75.99

6:1

126-9172

TURNBUCKLE

$40.69

6:2

126-9302

BEARING-END, LH ROD

$17.59

6:3

1-613204

BALLJOINT

$30.79

6:4

3220-3

Nut-Jam 3/8-24

$0.44

7

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

8

322-7

SCREW-HH

$1.25

9

104-8301

Nut-Nyloc 3/8-16 Flg

$1.42

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.11

11

1-633144

PIN-TRUNION

$13.19

12

133-5109

BEARING-SLEEVE

$2.85

13

109-2230

SPRING-COMPRESSION

$9.35

14

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

15

3296-29

Nut-Nyloc 5/16-18

$2.59

16

614672

Screw-Shoulder 3/8-16 x 1.295

$3.24

17

109-5891

HUB-THREADED

$14.29

18

1-513435

Washer-Spring Disc 1/2

$5.63

19

325-5

SCREW-HH

$1.42

20

109-6658

Nut-Nyloc 3/8-16 Flg

$1.42
