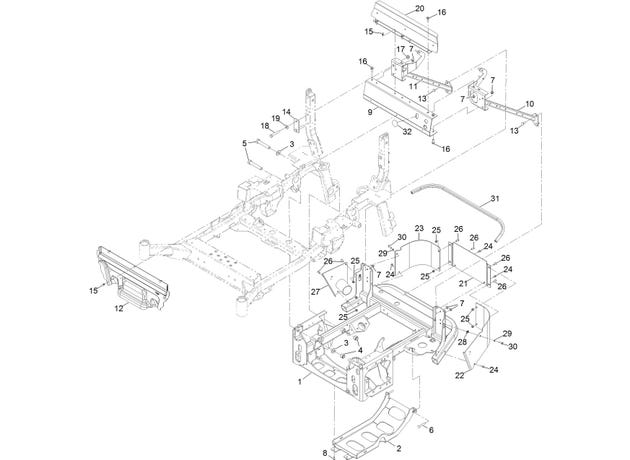

eXmark MN LZS88CDYM96RW0 Power Frame Assembly

1

126-5929-03

FRAME-POWER

$1,100.99

2

126-5922-03

PLATE-SKID

$179.99

3

103-2802

Washer-Spring Disc 3/4

$5.75

4

3296-51

Nut-Nyloc 3/4-10

$7.19

5

328-8

SCREW-HH

$15.39

6

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

7

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

8

613381

Screw-Button Head 5/16-18 x .725 TF

$5.75

9

126-8567-03

CHANNEL-CROSS

$75.89

10

126-8563-03

BRACE-ROPS, LH

$119.99

11

142-9443-03

WLDMT-ROPS RH BRACE

$162.99

12

126-7458

PANEL-DEFLECTOR, HEAT

$179.99

13

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

14

135-0412-03

PLATE-SPACER

$7.55

15

117-2382

PLUG-PLASTIC

$0.83

16

131-2220

SCREW-HHF

$1.68

17

99-5107

Nut-Lock 1/2-13

$2.20

18

112-7264

SCREW-HH

$9.83

19

109-9505

Washer, Spring Disc 1/2

$5.75

20

126-6557-03

SHIELD-AIR

$39.59

21

126-8954-03

PLATE-BUMPER, CENTER

$53.89

22

126-8952-03

PLATE-BUMPER, LH

$80.29

23

126-8953-03

PLATE-BUMPER, RH

$56.09

24

120-7950

Screw-1/4-20 x 1/2 TF Torx Plus

$2.98

25

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

26

126-6268

Screw-Truss HD 5/16-18 x 3/4 Torx Plus

$1.81

27

135-0880

PLATE-EXHAUST

$53.89

28

112-3306

NUT

$3.83

29

3290-475

WASHER-BELLEVILLE

$3.23

30

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

31

126-6845

SEAL-BULB

$27.49

32

135-3728

DECAL-COVER

$2.98
