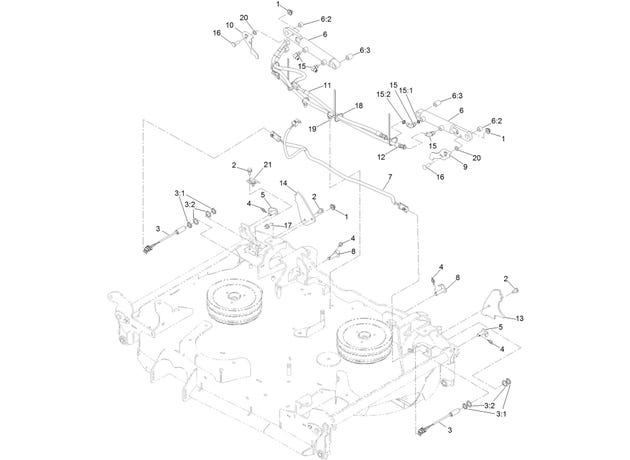

eXmark MN LZS88CDYM96RW0 Center Deck Hose and Switch Assembly

1

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

2

110-9380

SCREW-HWH

$2.98

3

115-5300

PROXIMITY SWITCH ASM

$127.99

3:1

117-3207

NUT-HEX

$17.59

3:2

117-3208

WASHER-LOCK, INTERNAL TOOTH

$4.19

4

126-8417

PIN-COTTER, LOCKING

$1.55

5

126-8448

PIN-CYLINDER

$27.49

6

126-9000

DECK FOLD CYLINDER ASM

$534.99

6:1:1

142-2768

KIT, CYL REPAIR

$99.99

6:2

126-8439

BUSHING

$43.99

6:3

126-8440

BUSHING

$58.29

7

126-9372

HARNESS-WIRE

$49.49

8

142-3762

PIN-CYLINDER

$27.49

9

135-5922

PLATE-PROXIMITY, LH

$51.69

10

135-5923

PLATE-PROXIMITY, RH

$51.69

11

135-1760

HOSE ASM

$130.99

12

135-1761

HOSE ASM

$130.99

13

135-2628-01

BRACKET-DECK STOP, LH

$21.99

14

135-2629-01

BRACKET-DECK STOP, RH

$23.09

15

340-132

FITTING-ELBOW, 90 DEG

$25.29

15:1

237-78

O-RING

$4.31

15:2

237-21

O-RING

$0.83

16

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

17

3234-42

Screw HHF 3/8-16 x 1

$3.59

18

3290-378

Tie-Cable

$1.11

19

32180-030

CLIP-TIE

$5.03

20

62-7120

WASHER

$2.20

21

135-6586

BRACKET-GUARD, SWITCH (RH)

$14.29
