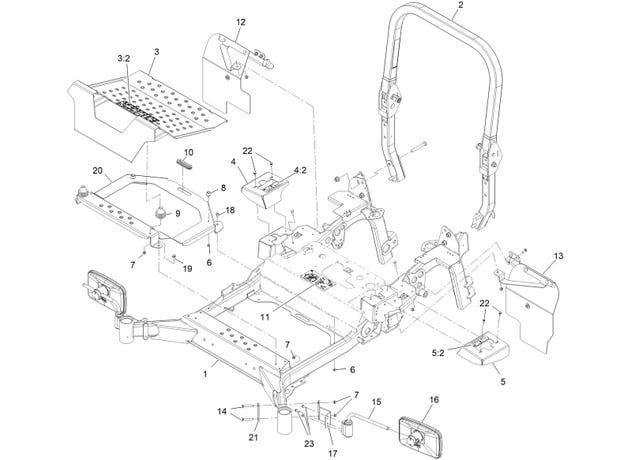

eXmark MN LZS86TDYM12RW0 Main Frame Assembly

#
Part #
Item
Price
Qty
Add
1
142-7219
MAINFRAME ASM, WD
$2,284.99
2
142-7220
ROPS ASM
$612.99
3
126-9066
PAN-FLOOR
$275.99
3:2
126-8383
DECAL-DANGER
$8.03
4
142-2392
ASM,MOTION CONTROL COVER W/DECAL, RH
$80.29
4:2
142-3952
DECAL-RH MOTION CONTROL
$10.79
5
142-2393
ASM,MOTION CONTROL COVER W/DECAL LH
$80.29
5:2
142-3953
DECAL-LH MOTION CONTROL
$10.79
6
104-7201
Nut-Nyloc 1/4-20 Flg
$1.55
7
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
8
109-2365
BUMPER-RUBBER
$5.39
9
126-5491
ISOLATOR
$18.69
10
126-7065
GROMMET-RUBBER
$5.39
11
142-7835
DECAL-SERVICE AID
$11.99
12
135-4933
ASM, RH MUD FLAP
$193.99
13
135-4943
ASM, LH MUD FLAP
$193.99
14
3230-7
Bolt-Carriage 5/16-18 x 2 1/4
$0.83
15
142-4120
MIRROR ARM
$82.49
16
142-4121
MIRROR, 144
$84.99
17
142-6584-01
PLATE-MIRROR MOUNT
$26.39
18
3234-4
Screw-HH FLG 1/4-20 x 3/4
$1.11
19
3234-47
Screw-HH FLG 5/16-18 x 3/4
$2.85
20
142-7203-01
BRACKET, FLOOR PAN RISER
$279.99
21
142-6583-01
BRACKET-MIRROR
$5.15
22
32144-10
Screw-HWH 1/4-20 x .62
$4.91
23
33103-020
SCREW-HHF
$3.83
