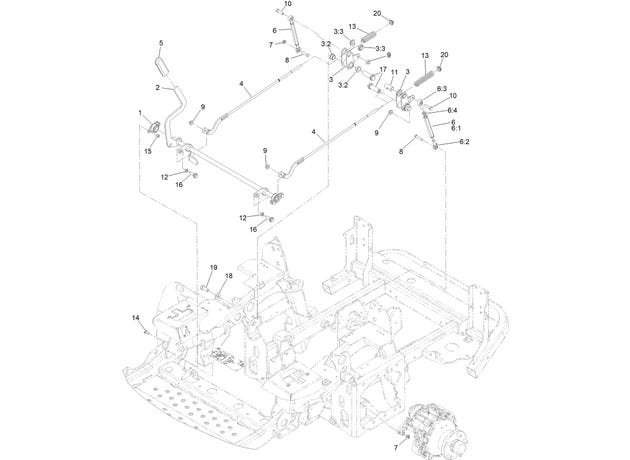

eXmark MN LZS80TDYM604W0 Parking Brake Assembly

1

1-633102

Bearing-Flanged

$18.69

2

142-4901

SHAFT-BRAKE

$136.99

3

126-3010

BRAKE BELLCRANK ASM

$75.99

3:2

109-8054

Bushing-Flanged

$5.75

3:3

135-2840

BUSHING-FLANGE

$7.07

4

142-4897

LINK-BRAKE, UPPER

$53.89

5

1-633268

GRIP-LEVER

$15.39

6

126-9171

TURNBUCKLE ASM

$80.99

6:1

126-9172

TURNBUCKLE

$42.89

6:2

126-9302

BEARING-END, LH ROD

$18.69

6:3

1-613204

BALLJOINT

$32.99

6:4

3220-3

Nut-Jam 3/8-24

$0.44

7

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

8

322-7

SCREW-HH

$1.25

9

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

1-633144

PIN-TRUNION

$14.29

12

133-5109

BEARING-SLEEVE

$2.98

13

109-2230

SPRING-COMPRESSION

$9.95

14

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

15

3296-29

Nut-Nyloc 5/16-18

$2.72

16

614672

Screw-Shoulder 3/8-16 x 1.295

$3.11

17

109-5891

HUB-THREADED

$15.39

18

1-513435

Washer-Spring Disc 1/2

$5.99

19

325-5

SCREW-HH

$1.55

20

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55
