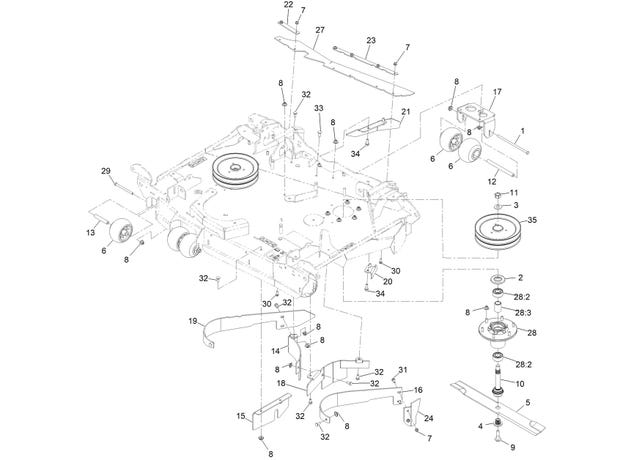

eXmark MN LZS86TDYM12RW0 Center Deck Assembly

1

99-7203

SCREW-HH

$11.99

2

103-1330

Guard-Bearing Top

$5.75

3

103-2802

Washer-Spring Disc 3/4

$5.75

4

103-3037

BUSHING,SPLINED

$23.09

5

103-6389-S

SPK, BLADE LOW LIFT 24.5 (.94 HOLE)

$39.59

6

103-8415

ROLLER-ANTI-SCALP

$24.19

7

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

8

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

9

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

10

116-3341

ASM-SPINDLE AND SEAL

$77.99

11

116-7306

NUT-HEX

$3.11

12

126-6115

SPACER-WHEEL

$12.09

13

126-7140

SPACER-WHEEL, SHORT

$16.49

14

135-0601-01

BAFFLE-CENTER, REAR (RH)

$61.59

15

135-0603-01

PLATE-BLOCK, FRONT

$28.59

16

135-0792-01

BAFFLE-DOGLEG, CENTER (LH)

$70.39

17

135-1036-01

BRACKET-ANTISCALP, REAR

$49.49

18

135-1827-01

BAFFLE-CENTER

$53.89

19

135-2451-01

BAFFLE-DOGLEG, CENTER (RH)

$70.39

20

135-2452-01

BAFFLE-BREAKER

$16.49

21

135-2453-01

PLATE-FIN, DISCHARGE

$30.79

22

135-2455-03

SUPPORT-FLAP, LH

$8.51

23

135-2457-03

SUPPORT-FLAP, LH

$14.29

24

135-2458

GUARD-DISCHARGE

$8.51

27

135-2618

FLAP-DISCHARGE

$36.29

28

135-3437

ASM-CUTTER HSG

$156.99

28:2

134-6634

BEARING-3205 TRASHGUARD

$32.99

28:3

135-3440

SPACER-BEARING

$8.99

29

323-38

Screw-HH 3/8-16 x 4 3/4

$12.09

30

3230-16

Bolt-Carriage 5/16-18 x 7/8

$2.98

31

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

32

3231-12

BOLT-CARR

$7.07

33

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

126-6634

SHEAVE-DOUBLE 96RD

$157.99
