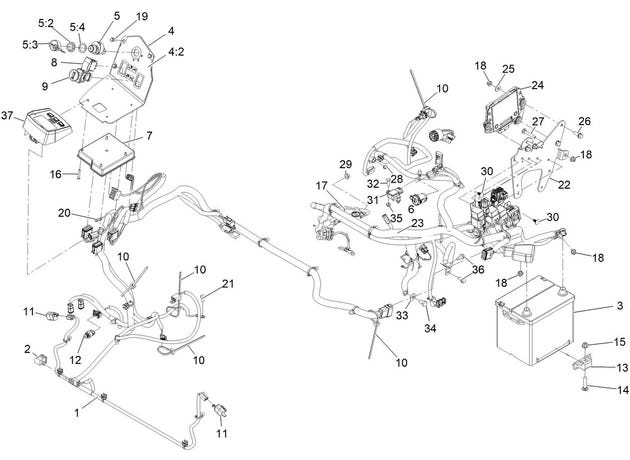

eXmark MN LZS80TDYM724W0 Electrical Assembly

1

126-7262

HARNESS-WIRE

$598.99

2

82-2190

Switch

$15.39

3

106-5187

BATTERY- DRY, 12V, 525 CCA

$170.99

4

135-6122

CONSOLE ASM

$72.59

4:2

126-9278

DECAL-CONTROL PANEL

$17.59

5

126-6285

IGNITION SWITCH ASM

$56.09

5:2

108-8660

NUT-MOUNTING

$9.59

5:3

106-5270

IGNITION KEY SET

$20.89

5:4

108-8659

WASHER-BACKUP

$13.19

6

126-6499

PORT-POWER, 12V

$16.49

7

135-3427

MODULE-MCU

$306.99

8

100-1535

SWITCH-ROCKER, (ON)-OFF-(ON)

$78.99

9

126-6187

SWITCH-PTO, SEALED

$56.09

10

3290-378

Tie-Cable

$1.11

11

110-6765

SWITCH

$14.29

12

126-7698

SENSOR-TEMPERATURE

$76.99

13

138-6335

RETAINER-BATTERY

$11.99

14

3231-5

Bolt-Carriage 3/8-16 x 1 3/4

$1.81

15

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

16

126-5092

SCREW-PPH

$3.59

17

126-7406

CABLE-BATTERY

$143.99

18

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

19

32105-15

Screw-Machine 1/4-20 x 3/4

$2.98

20

135-3998

HARNESS-WIRE, JUMPER

$31.89

21

99-5132

BOLT

$15.27

22

135-0503-03

BRACKET-MOUNT, ECU

$45.09

23

142-7960

HARNESS-WIRE, YANMAR

$557.99

24

135-4281

ECU

$1,721.99

25

3256-3

Washer-5/16 Std

$0.74

26

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

27

3230-6

Bolt-Carriage 3/16-18 x 2

$1.39

28

33003-00

Nut-Hex M6-1 Flg

$1.11

29

127-2371

NUT-HF

$3.23

30

117-2382

PLUG-PLASTIC

$0.83

31

126-9261

SENSOR-ATM

$152.99

32

321-5

Screw-HH 1/4-20 x 7/8

$0.59

33

98-5975

Washer-Spring Disc 3/8

$3.71

34

33115-016

SCREW-HH

$2.59

35

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

36

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

37

126-4232

MODULE, LDU

$423.99
