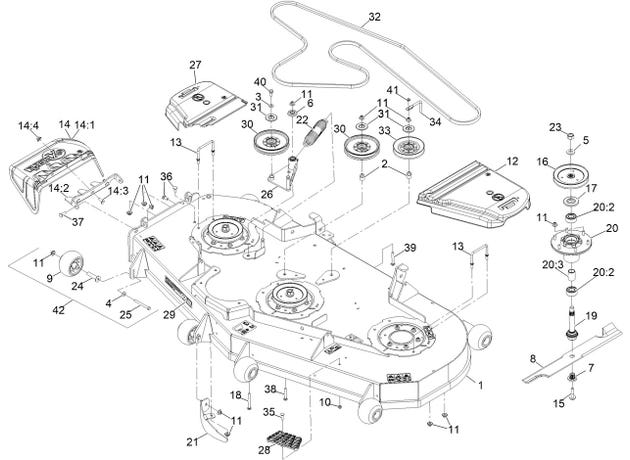

eXmark MN LZS80TDYM724W0 Deck Assembly

1

126-0913

DECK-724

$3,071.99

2

1-633456

BUSHING-IDLER

$5.39

3

43-0940

SPACER

$5.87

4

98-5975

Washer-Spring Disc 3/8

$3.71

5

103-2802

Washer-Spring Disc 3/4

$5.75

6

103-2916

Guard-Top

$2.98

7

103-3037

BUSHING,SPLINED

$23.09

8

103-6384

BLADE, SOLID 24.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01

8

103-6389

BLADE, LOW LIFT 24.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01

8

103-6394

BLADE, MULCH 24.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01

8

103-6404

BLADE, NOTCHED 24.5 (.94 hole)

product not available CALL FOR AVAILABILITY

$0.01

8

116-5171

BLADE-EXTREME 2, 24.50"

product not available CALL FOR AVAILABILITY

$0.01

9

103-8415

ROLLER-ANTI-SCALP

$24.19

10

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

12

109-6938

COVER-BELT, LH

$89.99

13

109-6982

WIREFORM-COVER

$12.09

14

109-7188

ASM,DISCHARGE CHUTE

$97.99

14:1

109-2738

CHUTE,DISCHARGE

$75.89

14:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

14:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

15

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

16

116-0675

SHEAVE,BLADE DRIVE 6.50

$87.99

17

103-1330

Guard-Bearing Top

$5.75

18

116-1502

Bolt-Carriage Shoulder 3/8-16 x 3 1/2

$8.51

19

116-3341

ASM-SPINDLE AND SEAL

$77.99

20

135-3437

ASM-CUTTER HSG

$156.99

20:2

134-6634

BEARING-3205 TRASHGUARD

$32.99

20:3

135-3440

SPACER-BEARING

$8.99

21

116-5834-01

BAFFLE-DOGLEG, LZ72

$78.09

22

116-6317

SPRING-EXTENSION

$28.59

23

116-7306

NUT-HEX

$3.11

24

116-8131

AXLE, ROLLER

$13.19

25

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

26

126-2585

IDLER ARM ASM

$161.99

27

126-3527

SHIELD-BELT

$99.99

28

126-4781-03

STEP-DECK

$26.39

29

126-6590

DECAL, 724

$9.11

30

126-7685

IDLER-PULLEY

$63.79

31

126-8043

SHIELD-DUST

$2.98

32

126-8048

BELT-V

$164.99

33

126-8766

IDLER V

$87.99

34

135-0362

GUIDE-BELT

$24.19

35

3230-3

Bolt-Carriage 5/16-18 x 1 1/4

$1.68

36

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

37

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

38

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

39

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

40

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

41

3296-59

Nut-Nyloc 3/8-16 Thin

product not available CALL FOR AVAILABILITY

$0.01

42

116-9981

KIT, ANTI-SCALP ROLLER

$53.89
