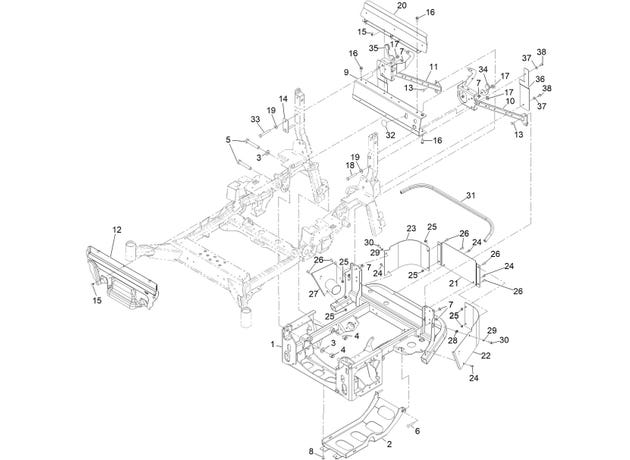

Power Frame Assembly

#
Part #
Item
Price
Qty
Add
1
126-5929-03
FRAME-POWER
$1,038.99
2
126-5922-03
PLATE-SKID
$169.99
3
103-2802
Washer-Spring Disc 3/4
$5.39
4
3296-51
Nut-Nyloc 3/4-10
$6.83
5
328-8
SCREW-HH
$14.29
6
3231-44
Bolt-Carriage 3/8-16 x 2 1/2
$2.98
7
104-8301
Nut-Nyloc 3/8-16 Flg
$1.42
8
138-9753
SCREW
$1.42
9
126-8567-03
CHANNEL-CROSS
$71.49
10
142-9442-03
WLDMT-ROPS LH BRACE
$162.99
11
142-9443-03
WLDMT-ROPS RH BRACE
$162.99
12
126-7458
PANEL-DEFLECTOR, HEAT
$169.99
13
3231-22
Bolt-Carriage 3/8-16 x 1
$3.47
14
135-0412-03
PLATE-SPACER
$7.19
15
117-2382
PLUG-PLASTIC
$0.83
16
131-2220
SCREW-HHF
$1.55
17
99-5107
Nut-Lock 1/2-13
$2.07
18
112-7264
SCREW-HH
$9.23
19
109-9505
Washer, Spring Disc 1/2
$5.39
20
126-6557-03
SHIELD-AIR
$37.39
21
126-8954-03
PLATE-BUMPER, CENTER
$50.59
22
126-8952-03
PLATE-BUMPER, LH
$75.89
23
126-8953-03
PLATE-BUMPER, RH
$52.79
24
120-7950
Screw-1/4-20 x 1/2 TF Torx Plus
$2.85
25
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
26
126-6268
Screw-Truss HD 5/16-18 x 3/4 Torx Plus
$1.68
27
135-0880
PLATE-EXHAUST
$50.59
28
112-3306
NUT
$3.59
29
3290-475
WASHER-BELLEVILLE
$3.11
30
3234-29
Screw-HH FLG 5/16-18 x 1
$3.11
31
126-6845
SEAL-BULB
$26.39
32
135-3728
DECAL-COVER
$2.85
33
325-35
SCREW-HH
$11.99
34
142-6024-03
STOP-ROPS
$28.59
35
142-6025-03
STOP-ROPS
$28.59
36
142-3197
SHEET-ROPS AIRDAM

product not available Product is currently not available

$1.00
37
3256-3
Washer-5/16 Std
$0.74
38
32144-70
Screw-HWH 5/16-18 x 3/4 TF
$2.85
