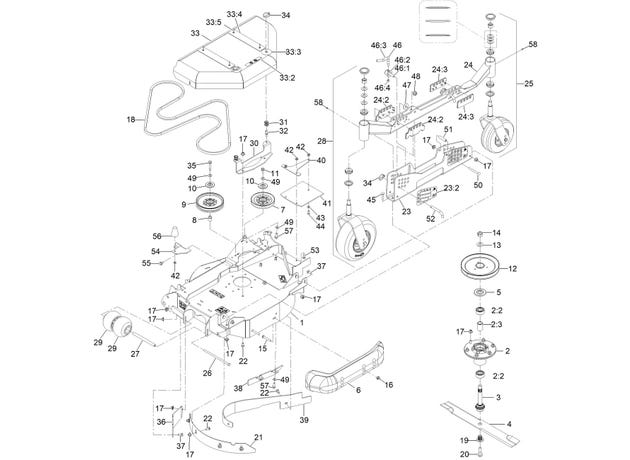

LH Wing Deck Assembly

#
Part #
Item
Price
Qty
Add
1
146-0487
ASM-DECK, LH WING 96

product not available Product is currently not available

$1.00
2
135-3437
ASM-CUTTER HSG
$147.99
2:2
134-6634
BEARING-3205 TRASHGUARD
$30.79
2:3
135-3440
SPACER-BEARING
$8.51
3
116-3341
ASM-SPINDLE AND SEAL
$81.39
4
103-6389-S
SPK, BLADE LOW LIFT 24.5 (.94 HOLE)
$37.39
5
103-1330
Guard-Bearing Top
$5.39
6
112-1479
SKID-BUMPER, DECK
$82.99
7
126-2960
IDLER-V
$62.14
8
1-633456
BUSHING-IDLER
$5.15
9
126-7685
IDLER-PULLEY
$59.94
10
126-8043
SHIELD-DUST
$2.85
11
3234-42
Screw HHF 3/8-16 x 1
$3.35
12
126-6635
SHEAVE-SINGLE 96RD
$107.99
13
103-2802
Washer-Spring Disc 3/4
$5.39
14
116-7306
NUT-HEX
$3.24
15
3231-31
Bolt-Carriage 3/8-16 x 2 1/2
$7.43
16
104-8301
Nut-Nyloc 3/8-16 Flg
$1.42
17
109-6658
Nut-Nyloc 3/8-16 Flg
$1.42
18
126-6442
BELT-V
$107.99
19
103-3037
BUSHING,SPLINED
$21.99
20
109-9220
Screw-SEMS 1/2-20 x 2.19
$8.63
21
135-2459-01
BAFFLE-DEPTH, LH
$32.99
22
3231-12
BOLT-CARR
$6.71
23
142-4241
ASM-CHANNEL, HOC LH
$163.99
23:2
126-8597
DECAL-HOC, LH
$12.09
24
142-6582
ASM-LH GAUGE WHEEL ARM
$487.99
24:2
142-3592
PLATE-GUIDE, FRONT
$11.99
24:3
142-3501
PLATE-GUIDE, REAR
$11.99
26
99-7203
SCREW-HH
$10.79
27
126-6115
SPACER-WHEEL
$11.99
29
103-8415
ROLLER-ANTI-SCALP
$23.09
30
135-2653-03
BRACKET-SHIELD MOUNT, OUTER
$23.09
31
126-1503
SPRING
$2.85
32
135-7455
PIN, SPRING
$5.39
33
135-6170
LH WING SHIELD ASM
$276.99
33:2
93-6687
DECAL-NO STEP
$16.49
33:3
135-3165
DECAL-COVER, SCRATCH
$2.85
33:4
135-6706
PLATE
$28.59
33:5
133-7130
RIVET-POP
$1.68
34
92-1298
PIN-LYNCH
$3.83
35
126-2956
Screw-HHF 3/8-16 x 2 1/4
$6.83
36
126-9757-01
PLATE-FILL
$24.19
37
3231-2
Bolt-Carriage 3/8-16 x 1
$2.07
38
135-1824-01
FIN-BAFFLE, DISCHARGE WING (LH)
$21.99
39
135-0794-01
BAFFLE-DOGLEG, CENTER (RH)
$67.09
40
135-0618-03
SUPPORT-FLAP, LH
$10.79
41
135-1849
GUARD-TIRE, LH
$13.19
42
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
43
3256-23
Washer-5/16 SAE
$2.46
44
322-3
Screw-HH 5/16-18 x 3/4
$1.11
45
3231-5
Bolt-Carriage 3/8-16 x 1 3/4
$1.68
46:1
106-3239
Screw-Lock
$50.59
46:2
107-1644
CAP-LOCK
$37.39
46:3
107-1664
LEVER ASM
$72.59
46:4
3296-29
Nut-Nyloc 5/16-18
$2.59
47
30-8770
Washer
$11.99
48
99-5107
Nut-Lock 1/2-13
$2.07
49
98-5975
Washer-Spring Disc 3/8
$3.47
50
3231-11
Bolt-Carriage 3/8-16 x 3 1/2
$5.39
51
135-2424
SPACER
$15.39
52
135-2073
PIN-HOC
$26.39
53
3230-10
Bolt-Carriage 5/16-18 x 7/8
$3.95
54
135-2611-01
BRACKET-RETAINER, COVER
$14.29
55
110-9380
SCREW-HWH
$2.85
56
114-1925
BUMPER-RUBBER
$25.29
57
3234-11
Screw-HH FLG 3/8-16 x 1
$4.31
58
1-811010
Plug
$5.39
