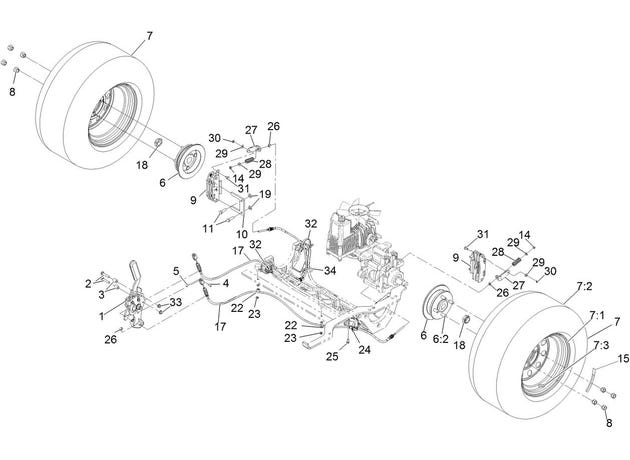

eXmark MN LZS691KA524 Rear Wheel and Park Brake Assembly

1

116-7551

BRAKE HANDLE ASM

$284.99

2

116-0629

Screw-Carriage 5/16-18 x 1 3/4 short

$2.98

3

82-6840

SPACER

$8.15

4

60-1730

PIN-CLEVIS

$6.11

5

3272-1

Pin-Cotter 1/16 x 1/2

$0.44

6

142-2701

WHEEL HUB ASM

$100.99

6:2

116-1696

STUD-WHEEL

$4.19

7

115-3590

WHEEL AND TIRE ASM

$372.99

7:1

109-3645

RIM ASM

$256.99

7:2

116-5363

Tire (Multi-Trac 23 X 9.50-12)

$195.99

7:3

232-27

STEM-VALVE

product not available CALL FOR AVAILABILITY

$3.30

8

242-50

Nut-Lug 1/2-20

$2.11

9

109-2889

BRAKE CALIPER ASM-LH

$171.99

10

109-0958

PLATE-MOUNT, BRAKE

$16.49

11

92-5727

Screw-HH 3/8-16 x 1 1/4 patch lock

$3.95

14

3296-13

Nut-Nyloc 1/4-28

$4.55

15

126-2055

DECAL-TORQUE, WHEEL HUB LUG

$7.07

17

116-8963

CABLE-BRAKE

$75.99

18

116-1399

LOCKNUT

$15.39

19

3256-24

Washer-3/8 SAE

$0.83

22

88-7970

CLIP

$5.27

23

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

24

116-6397

BRACKET-CABLE

$8.51

25

32144-10

Screw-HWH 1/4-20 x .62

$5.15

26

32120-18

E-Ring

$1.39

27

116-6182

BRACKET-BRAKE, L

$19.79

28

116-6347

SPRING-DIE

$18.69

29

3256-22

Washer-1/4 SAE

$0.59

30

32151-86

E-Ring

$2.98

31

116-6348

PIN-BRAKE

$2.98

32

3334-945

TIE-CABLE

$1.55

33

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

34

116-0940

TIE-CABLE

$6.71
