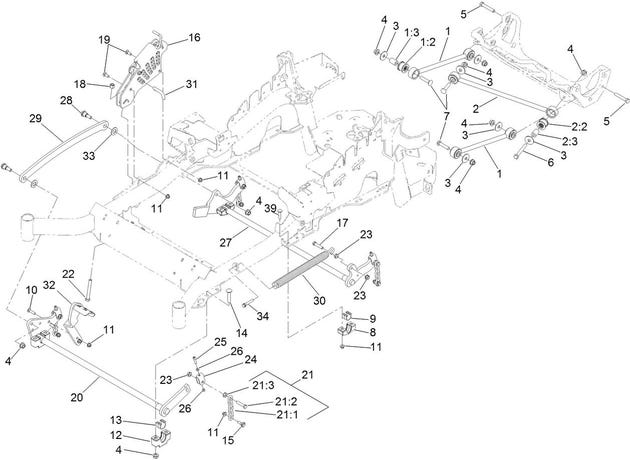

eXmark MN LZS749EKC724 Decklift Assembly

1

109-7952

DECK STRUT ASM

$134.99

2

109-5013

PANHARD ROD ASM

$131.99

2:2

109-5009

BUSHING-SUSPENSION, RUBBER

$5.75

2:3

109-5010

SPACER

$13.19

3

86-1990

Washer

$4.43

4

99-5107

Nut-Lock 1/2-13

$2.20

5

325-12

Screw-HH 1/2-13 x 3

$6.83

6

325-17

Screw-HH 1/2-13 x 4

$6.83

7

3233-34

Bolt-Carriage 1/2-13 x 2 1/2

$10.79

8

116-0818-03

SUPPORT-CROSS SHAFT, REAR BEARING

product not available CALL FOR AVAILABILITY

$0.01

9

109-7173

BEARING-CROSS SHAFT, REAR

$5.75

10

3231-4

Bolt-Carriage 3/8-16 x 1 1/2

$4.31

11

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

12

109-9409

SUPPORT-BEARING, CROSS SHAFT (FRONT)

$15.39

13

109-9410

BEARING-CROSS SHAFT, FRONT

$5.75

14

116-1700

Bolt-Carriage 1/2-13 x 2 1/2 spl neck

$5.75

15

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

16

109-7438

HOC ASM

$253.99

18

3296-23

Nut-Nyloc 1/2-13

$1.25

19

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

20

116-2217-03

CROSS SHAFT-FRONT

product not available CALL FOR AVAILABILITY

$0.01

21

116-0756

DECK LIFT CHAIN ASM

$15.39

21:1

1-633447

CHAIN-LIFT, DECK

$11.99

21:2

109-9065

Screw-HH 7/16-14 x 2

$3.71

22

116-0559

Bolt-HH 1/2-13 x 4 tap

$7.07

23

32128-37

Nut-Whizlock 7/16-14

$4.67

24

109-9066

YOKE-ADJUST, DECK

$8.51

25

322-47

Screw-HH 5/16-18 x 1 1/4

$2.72

26

3218-2

Nut-Jam 5/16-18

$0.59

27

116-0459-03

LIFT-DECK, REAR

$306.99

28

116-0780

Screw-Shoulder HHF 1/2-13 x 1.12

$9.59

29

116-0797-03

LINK-LIFT, DECK

$126.99

30

116-0000

SPRING-EXTENSION

$126.99

31

116-5584

PIN-HOC

$5.63

32

116-1919-01

LEVER-FOOT

$91.99

33

3256-28

Washer-3/4 SAE

$3.95

34

92-7674

Screw-SHCS 3/8-16 x 2.212

$3.11

39

3231-5

Bolt-Carriage 3/8-16 x 1 3/4

$1.81
