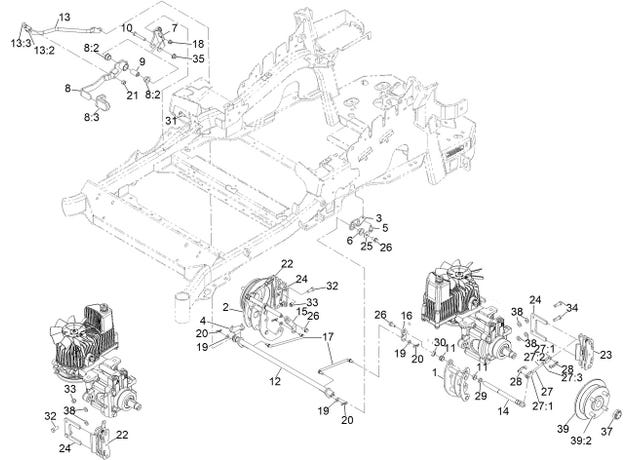

eXmark MN LZS801GKA604A1 Park Brake Assembly

1

126-4248

MOUNT-BELLCRANK, LH

$35.19

2

126-4249

MOUNT-BELLCRANK, RH

$38.49

3

116-9681

MOUNT-PIVOT, LH

$5.75

4

116-9682

MOUNT-PIVOT, RH

$5.75

5

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

7

116-9096-01

BRACKET-MOUNT

$26.39

8

135-7565

BRAKE LEVER ASM

$42.89

8:2

109-8054

Bushing-Flanged

$5.75

8:3

132-4749

GRIP-LEVER

$5.75

9

116-9117

PIVOT-HANDLE, BRAKE

$3.11

10

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

11

126-6199

BUSHING

$8.51

12

135-7800

SHAFT-CROSS

$60.49

13

135-7805

ASM, FRONT LINKAGE

$69.29

13:2

94-7572

END-TIE ROD, RH

$35.19

13:3

3220-3

Nut-Jam 3/8-24

$0.44

14

126-4251

BELLCRANK

$19.79

15

126-3716

ARM-INNER, RH

$7.07

16

126-3715

ARM-INNER, LH

$7.07

17

135-7584

WIREFORM, MID-LINK, LWB

product not available CALL FOR AVAILABILITY

$0.01

18

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

19

3256-23

Washer-5/16 SAE

$2.59

20

119-1415

PIN-COTTER, LOCKING

$1.55

21

3296-6

Nut-Nyloc 3/8-24

$1.94

22

135-7440

CALIPER-BRAKE, RH

$83.99

23

135-7441

CALIPER-BRAKE, LH

$83.99

24

135-7828

PLATE-MOUNT, BRAKE

$12.09

25

115-7109

WASHER-FLAT

$1.68

26

98-9940

SCREW-HHF

$2.33

27

126-7587

REAR LINKAGE ASM

$21.99

27:1

126-7588

YOKE

product not available CALL FOR AVAILABILITY

$0.01

27:2

116-9069

LINKAGE, REAR

product not available CALL FOR AVAILABILITY

$0.01

27:3

3220-1

Nut-Jam 1/4-28

$1.39

28

126-6395

PIN-CLEVIS, SPRING

$8.99

29

126-6200

SPACER

$3.11

30

32120-19

E-Ring

$2.98

31

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

32

135-7915

SCREW-HH,

$1.55

33

112-0236

NUT-LOCK

$6.35

34

135-7890

SCREW-HH, PATCH,

$1.68

35

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

37

116-1399

LOCKNUT

$15.39

38

3256-24

Washer-3/8 SAE

$0.83

39

142-2701

WHEEL HUB ASM

$100.99

39:2

116-1696

STUD-WHEEL

$4.19
