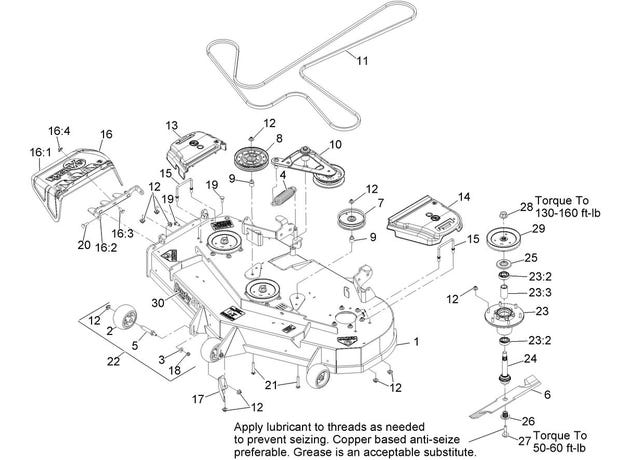

eXmark MN LZS27KC524 Deck Assembly

1

109-9149

ASM,DECK W/ DECALS 52

$3,375.99

2

1-603299

ROLLER-SCALP, ANTI

$23.09

3

98-5975

Washer-Spring Disc 3/8

$3.71

4

116-6317

SPRING-EXTENSION

$28.59

5

126-2928

KIT, ANTI-SCALP ROLLER AXLE

$27.49

6

103-6382-S

SPK, BLADE SOLID 18.0 (.94 HOLE)

$37.39

6

103-6387-S

SPK, BLADE LOW LIFT 18.0 (.94 HOLE)

$32.99

6

103-6392-S

SPK, BLADE MULCH 18.0 (.94 HOLE)

$31.89

6

116-5175-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89

6

103-6402-S

SPK, BLADE NOTCHED 18.0 (.94 HOLE)

$31.89

7

1-613098

PULLEY-IDLER

$48.39

8

126-7685

IDLER-PULLEY

$63.79

9

1-633456

BUSHING-IDLER

$5.39

10

116-3755

DECK IDLER ASM

$234.99

11

135-5776-SL

BELT,V-B X 186.00" WITH SLEEVE

$154.99

13

109-6935

COVER-BELT, RH

$39.59

14

109-6936

COVER-BELT, LH

$39.59

15

109-6982

WIREFORM-COVER

$12.09

16

109-7188

ASM,DISCHARGE CHUTE

$97.99

16:1

109-2738

CHUTE,DISCHARGE

$75.89

16:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

16:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

17

109-9915-01

BAFFLE,DISCHARGE 52/60

$35.19

18

3290-357

Nut-Whizlock 3/8-16

$1.11

19

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

20

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

21

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

22

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

23

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

23:2

116-0720

BEARING-BALL

$23.09

23:3

116-3312

SPACER-BEARING

$9.59

24

116-3341

ASM-SPINDLE AND SEAL

$77.99

25

116-1286

GUARD,BEARING TOP .989

$5.99

26

103-3037

BUSHING,SPLINED

$23.09

27

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

28

104-0753

Nut-Hex 3/4-16 Flg Special

$4.91

29

116-0675

SHEAVE,BLADE DRIVE 6.50

$87.99

30

116-0034

DECAL,ULTRACUT 52 SERIES 4

$19.79
