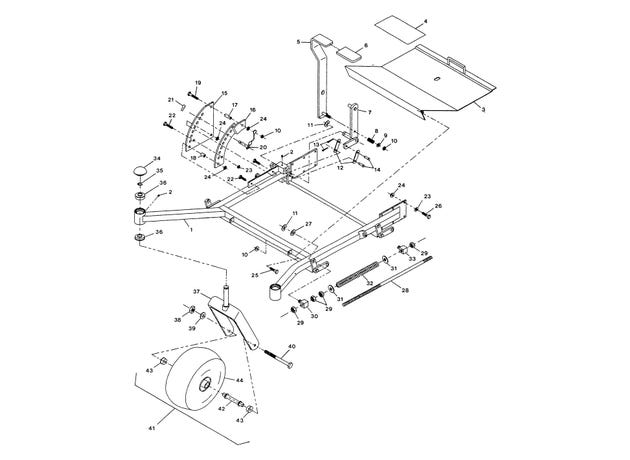

eXmark MN LZ-25KC60 Front Frame Group

1

1-631778

Frame wldmt, front 52"

product not available CALL FOR AVAILABILITY

$0.01

2

302-19

Zerk-1/4-28 Str

$2.85

3

103-1502

Asm,floorpan (103-1490-01) w/pads and decals

product not available CALL FOR AVAILABILITY

$0.01

4

1-373065

Pad, anti-skid

$8.27

5

103-2084

LIFT LEVER/GRIP ASM

$79.19

6

1-633295

GRIP-LEVER, LIFT

$8.51

7

109-0632

KIT,LZ LOWER DECK LIFT LEVER

$89.99

8

1-633325

SPRING-COMPRESSION

$5.75

9

3256-4

Washer-3/8 Std

$1.94

10

3296-39

Nut-Nyloc 3/8-16

$2.98

11

32151-103

E-Ring

$3.47

12

1-633068

ARM-LIFT, DECK

$12.09

13

3272-10

Pin-Cotter 1/8 x 3/4

$1.39

14

1-808284

PIN-CLEVIS

$3.83

16

1-631981

Plate weldment, deck lift

product not available CALL FOR AVAILABILITY

$0.01

17

1-633082

Bushing

$12.09

18

1-633080

Spacer

$11.99

19

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

20

1-633097

PIN-HITCH (W/LANYARD)

$24.19

21

1-806005

Hairpin-Cotter

$2.98

22

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

23

98-5975

Washer-Spring Disc 3/8

$3.71

24

3290-357

Nut-Whizlock 3/8-16

$1.11

25

323-6

Screw-HH 3/8-16 x 1

$2.98

26

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

27

3256-29

Washer-7/8 SAE

$3.11

28

1-633096

ROD-LIFT, DECK

$24.19

29

3217-11

Nut-Hex 5/8-11

$3.95

30

1-633441

SWIVEL-DECK MOUNT, REAR

$27.49

31

3256-7

Washer-5/8 Std

$1.94

32

1-633064

SPRING-SUPPORT, DECK

$34.09

33

1-631585

KIT-DECK MNT SWIVEL

$25.29

34

1-513649

Cap, grease

$12.09

35

32151-36

Ring-Retaining

$5.15

36

1-513104

Bearing, ball

$73.69

37

1-632006-01

Caster wldmt

$134.99

38

3217-9

NUT-HH

$0.74

39

3253-7

WASHER-LOCK

$1.25

40

325-36

Screw-HH 1/2-13 x 7 1/2

$12.09

42

1-632050

Spacer weldment, wheel

$32.99

43

1-631560

KIT - WHEEL BEARING

$65.99

44

1-634662

CASTER WHEEL ASM

$228.99



1-631781

Frame wldmt, front

product not available CALL FOR AVAILABILITY

$0.01



1-633002

TIRE

$91.99



1-633003

Wheel

product not available CALL FOR AVAILABILITY

$0.01
